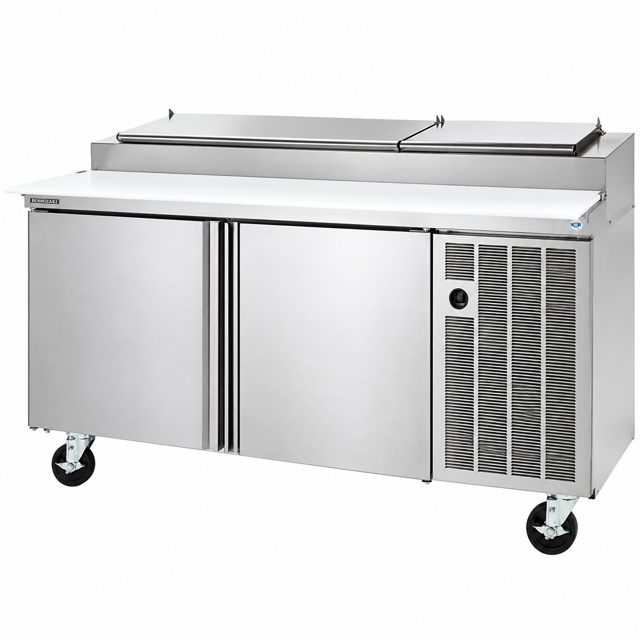

The Delfield Company Refrigeration Equipment 18660BUC

Ensure all acidic items are stored properly

Are all pans in place during operation?

Is the unit operated with minimal door openings?

Is the top section free from overnight storage?

Remove products from pans for overnight storage

Check if the drain tube is connected to the evaporator drain pan.

Ensure the end of the drain tube is in the condensate evaporator in the machine compartment.

Is there water accumulation inside the unit?

Is there water collecting underneath the unit?

Unit Leveling and Drain Line Check

Ensure all drain lines are free of obstructions.

Clean the interior with soap and warm water

Was the interior cleaning sufficient with soap and warm water?

Use ammonia and water or a nonabrasive liquid cleaner if necessary

Clean the exterior with soap and warm water

Was the exterior cleaning sufficient with soap and warm water?

Use ammonia and water or a nonabrasive liquid cleaner if necessary

Rub with the grain of the stainless steel

Pull the track out to 1.50” to 2.00” (3.8cm to 5.0cm)

Line up the rear white roller with the half moon notch in the outer profile

Rotate the track away from the outer track profile to free the intermediate profile

Choose cleaning method for intermediate tracks

Wash the intermediate track ensuring each roller is thoroughly cleaned

Inspect the condenser coil for dust, dirt, and grease accumulation

Select the cleaning method used

Was the condenser coil extremely dirty?

Clean the condenser coil using the selected method
