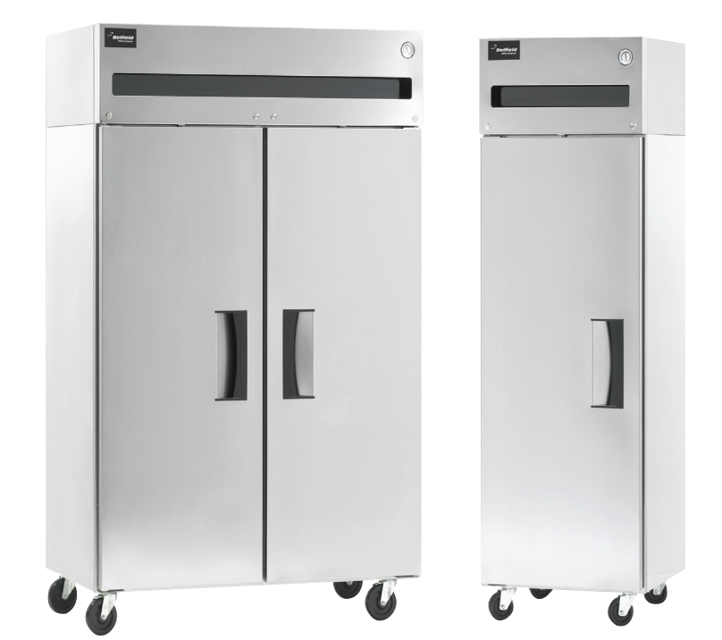

The Delfield Company Refrigeration Equipment 6076XL-SHR

Select the cleaning method based on the coil condition

Is the condenser coil free of dust, dirt, and grease after cleaning?

Ensure no high pressure water was used during cleaning

Clean the condenser fins with a vacuum cleaner or stiff brush

Was a commercially available condenser cleaner used?

Describe any issues encountered during cleaning

Basic Maintenance — Drain Maintenance

Check for excessive water accumulation inside the unit

Ensure the drain tube is connected from the evaporator housing to the condensate evaporator drain pan

Inspect for water collected underneath the unit

Verify the condensate evaporator drain tube is inside the drain pan

Ensure all drain lines are free of obstructions

Remove any food product blocking the drain lines

Defrost Timer Programming Guide (All Models)

Adjust defrost time on two and three door models by rotating pointer on inside (2 hour) dial

Adjust defrost time on one door models by setting electric control switches 1 thru 4

Adjust cycle time on one door models by setting switches 1 thru 4 on 'Cycletime' dip switches

Adjust defrost initiation time on two and three door models by placing pins in the outer dial

Is the defrost cycle set to not exceed 60 minutes?

Consult factory if complete de-icing of the coil is not accomplished within 60 minutes

Basic Maintenance — Gasket Maintenance

Clean the gasket with warm soapy water

Avoid using full strength cleaning products on the gasket

Ensure no sharp tools or knives are used for cleaning

Check if gasket needs replacement

Replace gasket if necessary by pulling out the old gasket and pressing in the new one

Basic Maintenance — Doors/Hinges

Check if the hinge screws are tight.

Tighten the screws on the hinge brackets if necessary.

Is the hinge pulling out of the frame?

Describe any damage noticed on the doors or hinges.
