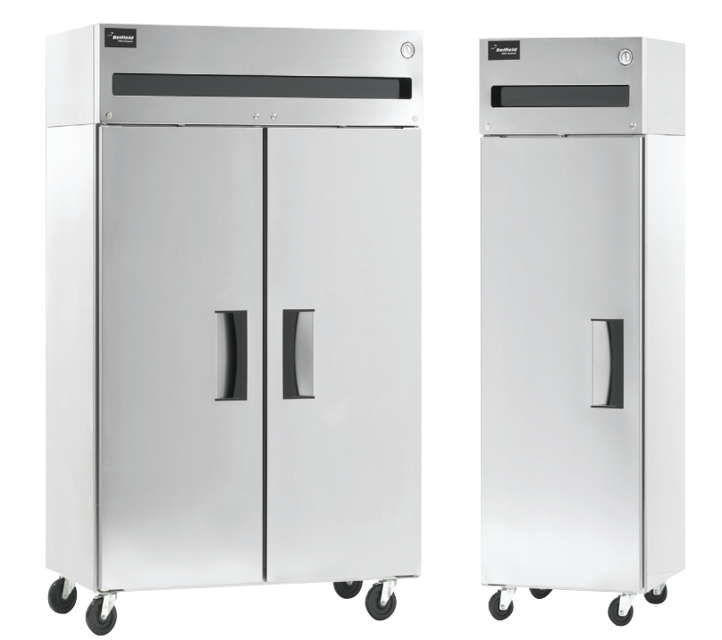

The Delfield Company Refrigeration Equipment 6025XL-S

Basic Maintenance — Doors/Hinges

Check if the hinge screws are tight.

Tighten the screws on the hinge brackets if necessary.

Is the door properly aligned after tightening?

Describe any damage noticed on the door or hinges.

Defrost Timer Programming Guide (All Models)

Adjust defrost time on two and three door models by rotating pointer on inside (2 hour) dial

Adjust defrost time on one door models by setting electric control switches 1 thru 4

Adjust cycle time on one door models by setting switches 1 thru 4 on 'Cycletime' dip switches

Adjust defrost initiation time on two and three door models by placing pins in the outer dial

Is the back-up time set to 60 minutes or less?

Consult the factory if complete de-icing of the coil is not accomplished within 60 minutes

Basic Maintenance — Drain Maintenance

Check for excessive water accumulation inside the unit

Ensure the drain tube is connected from the evaporator housing to the condensate evaporator drain pan

Inspect the condensate evaporator drain tube for proper placement inside the drain pan

Check all drain lines for obstructions

Remove any food product blocking the drain lines

Basic Maintenance — Gasket Maintenance

Clean the gasket with warm soapy water

Avoid using full strength cleaning products on the gasket

Ensure no sharp tools or knives are used for cleaning

Check if gasket needs replacement

Operation — To Set Time of Day (Two & Three Door Models Only)

Grasp the knob of the Paragon 8145 time clock dial in the center of the inner (2 hour) dial and rotate it in a counter-clockwise direction.

Continue turning until the correct time of day on the outer dial lines up with the time pointer.

Was the correct time of day set on the outer dial?

Was there an interruption of power to the freezer?

Disconnect power supply before servicing.

Ensure no live electrical parts are exposed.
