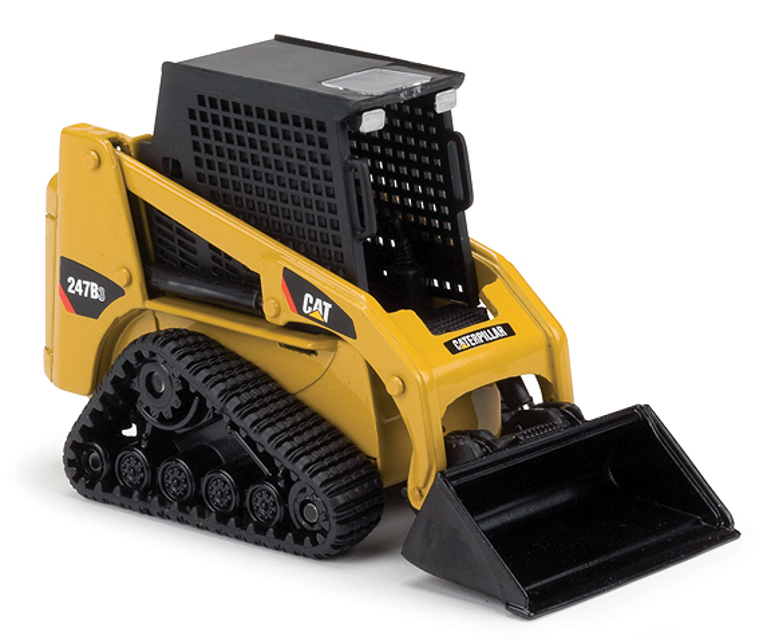

Caterpillar Skid Steer Loader 247B3

Cooling System Coolant Sample (Level 1) - Obtain

WARNING: Pressurized system: Hot coolant can cause serious burn. To open cap, stop engine, wait until radiator is cool. Then loosen cap slowly to relieve the pressure.

Is the radiator cap removed slowly?

Note: Do not take the sample from the Coolant Overflow Reservoir.

Is the sample taken from the radiator?

Supplies for collecting samples can be obtained from your Caterpillar dealer.

Are the unused sampling bottles stored in plastic bags?

Are the lids on empty sampling bottles until you are ready to collect the sample?

WARNING: Pressurized system: Hot coolant can cause serious burn. To open cap, stop engine, wait until radiator is cool. Then loosen cap slowly to relieve the pressure.

When a Caterpillar Extended Life Coolant is used, an extender must be added to the cooling system periodically.

Radiator cap loosened and removed

Amount of coolant drained from the radiator

Amount of cooling system additive added

Radiator cap and gasket inspected and replaced if necessary

1. Position one final drive so that the oil fill/drain plug (1) is at the top.

Note: Refer to Operation and Maintenance Manual, “General Hazard Information” for information on Containing Fluid Spillage.

2. Use an 8 mm (5/16 inch) allen wrench. Remove the oil check plug (2).

3. Check the oil level. The oil should be near the bottom of the opening fo the oil check plug (2).

4. Add oil through the opening for the oil fill/drain plug (1), if necessary.

Note: Overfilling the final drive will cause the seals on the travel motor to allow hydraulic oil or water to enter the final drive. This may contaminate the final drive.

6. Install the oil plugs. Tighten the oil plugs to a torque of 27 ± 1 N·m (20 ± 0.7 lb ft).

Note: Operating the machine in conditions that are muddy or sandy will cause accelerated wear on the sprocket and other undercarriage components. It is important to clean the undercarriage of the machine daily in order to maximize component life.

Sleeves meet the minimum thickness?

If the sleeves do not rotate freely, refer to Operation and Maintenance Manual, “Sprocket - Inspect” for information about the inspection of the sprocket assembly.

Sign off on the sprocket sleeve inspection

Fuel timing specification from the Engine Information Plate

Selection of the Oil Change Interval

Criteria for 4000 hour interval

Procedure for Changing the Hydraulic Oil

Steps for changing the hydraulic oil

Sign off on the maintenance procedure
