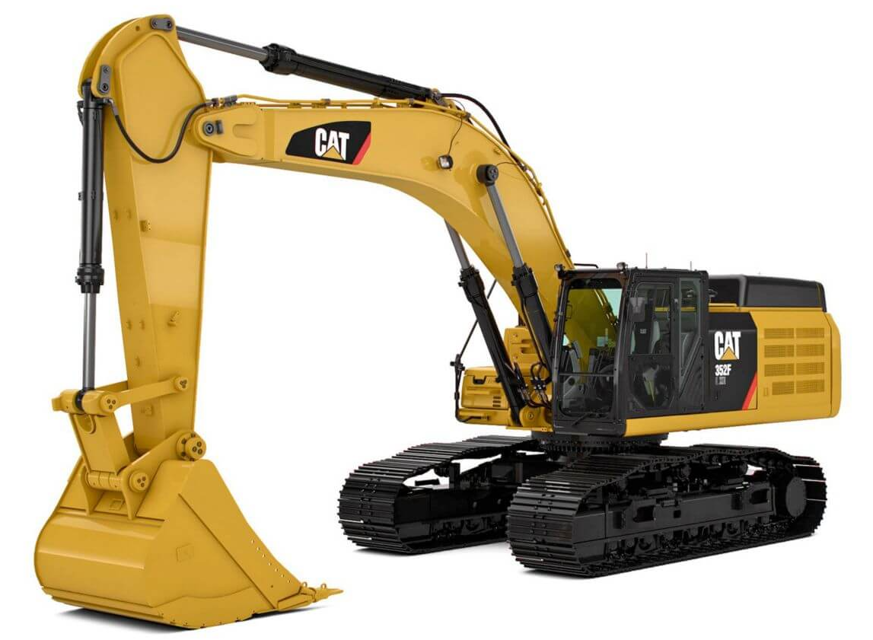

Caterpillar Excavator 352F

Counterweight Removal Chain - Inspect

Counterweight Removal Chain Inspection

Access door on the right side of the machine opened to access the sampling valve?

Sampling valve for the engine oil located on the top of the engine oil filter accessed?

Final Drive Oil Sample - Obtain

Final Drive Oil Sample Obtainment

Fuel System Primary Filter (Water Separator) Element - Replace

Fuel System Primary Filter Replacement

Is the date of installation label present?

If the date of installation label is missing, replace belt within 3 years from the year of manufacture.

Year of manufacture as indicated on belt webbing label, buckle housing, or installation tags

Consult your Cat dealer for the replacement of the seat belt and the mounting hardware.

Manufacture date of new seat belt

Does the manufacture date of new seat belt exceed install by date on label?

Complete seat belt system should be installed with new mounting hardware.

WARNING: Engine hood and engine hood parts can be hot while engine is running or immediately after engine shutdown. Hot parts or hot components can cause burns or personal injury. Do not allow these parts to contact your skin, when engine is running or immediately after engine shutdown. Use protective clothing or protective equipment to protect your skin.

NOTICE: If the engine is running or the key is in the ON position the ARD plug will continue to fire. Turn the key to the OFF position before servicing the ARD plug.

Machine positioned on a level surface and bucket lowered to the ground?

Hydraulic lockout control moved to the LOCKED position and engine stopped?

Exhaust system cooled before performing this procedure?

Engine hood unlatched and raised?

Any dirt or debris removed from the area around the spark plug?

Wire harness removed from spark plug?

Spark plug loosened and removed using a deep well socket and a breaker bar?

Hydraulic System Oil Level - Check

Steps to check hydraulic system oil level

Steps to test indicators and gauges

Steps to inspect track adjustment

Condenser (Refrigerant) - Clean

NOTICE: If excessively dirty, clean condenser with a brush. To prevent damage or bending of the fins, do not use a stiff brush. Repair the fins if found defective.

Open the front access door on the left side of the machine. The condenser is located behind the cab.

Inspect the condenser for debris. Clean the condenser, if necessary.

Use clean water to wash off all dust and dirt from the condenser.

WARNING: Hot oil and hot components can cause personal injury. Do not allow hot oil or hot components to contact skin.

Position one final drive so that oil drain plug (2) is at the bottom.
