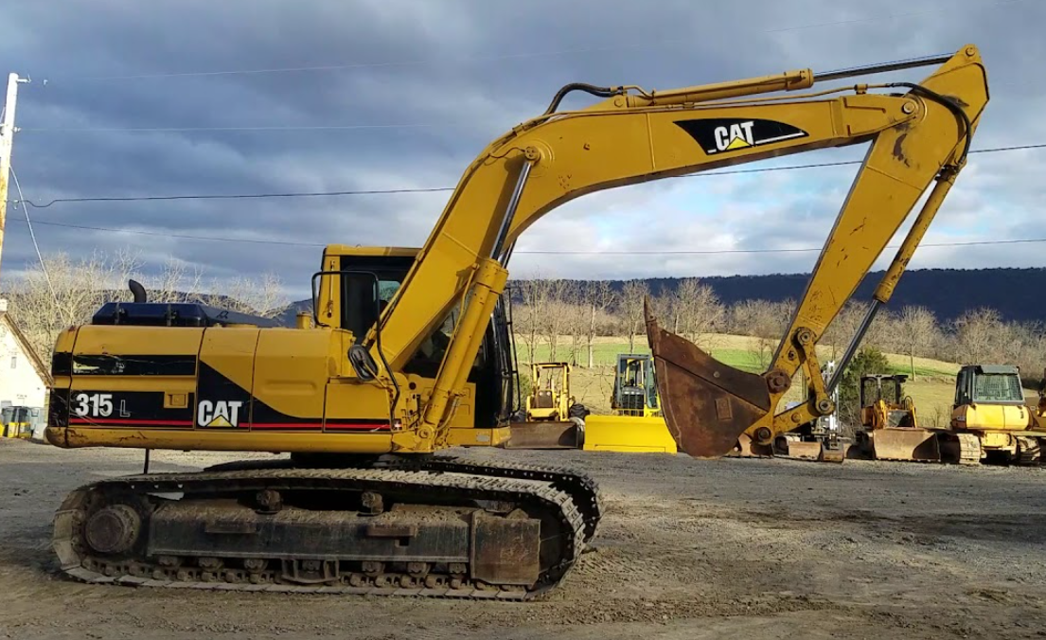

The Caterpillar Excavator 315L is a versatile and efficient piece of heavy machinery designed for various construction and excavation tasks. Known for its reliability and performance, the 315L model offers advanced hydraulic systems and superior maneuverability, making it ideal for both small and large projects.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Caterpillar Excavator 315L

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Caterpillar Excavator 315L

Create an account to install this asset package.

Maintenance Plans for Caterpillar Excavator Model 315L

Integrate maintenance plans directly into your work orders in MaintainX.

Front Gear Group Installation

NOTICE: Keep all parts clean from contaminants. Contaminants may cause rapid wear and shortened component life.

All mating surfaces are clean and free of old gasket material

New gasket and front plate (6) installed

Torque of five bolts (5) that hold front plate (6) to the cylinder block

Idler shaft (4) installed onto the cylinder block

Idler shaft cooled to 0 °C (32 °F) before installation if necessary

Marks on the timing gears are in alignment

Idler gear (3) installed

Thrust plate (2) installed

Run this procedure

Front Housing Installation

NOTICE: Keep all parts clean from contaminants. Contaminants may cause rapid wear and shortened component life.

Check the condition of the gaskets and the O-ring seals. If the gaskets or the O-ring seals are damaged or worn, use new parts for replacement.

Clean old gasket material (11) from the contact surface of front housing (8) and the timing gear plate. Install a new gasket.

Install bearing (12), if equipped. If the bearing is worn or damaged, use a new part for replacement.

Install O-ring seal (13) onto cover (9), if equipped.

Install a new crankshaft front seal (10), if the crankshaft front seal was removed.

If equipped, install camshaft gear cover (9) onto front housing (8).

Install front housing (8).

Install bolts (7) in order to fasten front housing (8) onto the cylinder block.

Run this procedure

Front Housing Removal

Start By:

A. Remove the alternator. Refer to Disassembly and Assembly, 'Alternator - Remove and Install'.

B. Remove the vibration damper and the pulley. Refer to Disassembly and Assembly, 'Vibration Damper and Pulley - Remove and Install'.

NOTICE: Keep all parts clean from contaminants. Contaminants may cause rapid wear and shortened component life.

NOTICE: Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.

Refer to Special Publication, NENG2500, 'Caterpillar Tools and Shop Products Guide' for tools and supplies suitable to collect and contain fluids on Caterpillar products.

Dispose of all fluids according to local regulations and mandates.

1. Remove four bolts (1) and the washers from fan pulley (2).

2. Remove fan pulley (2).

Run this procedure
