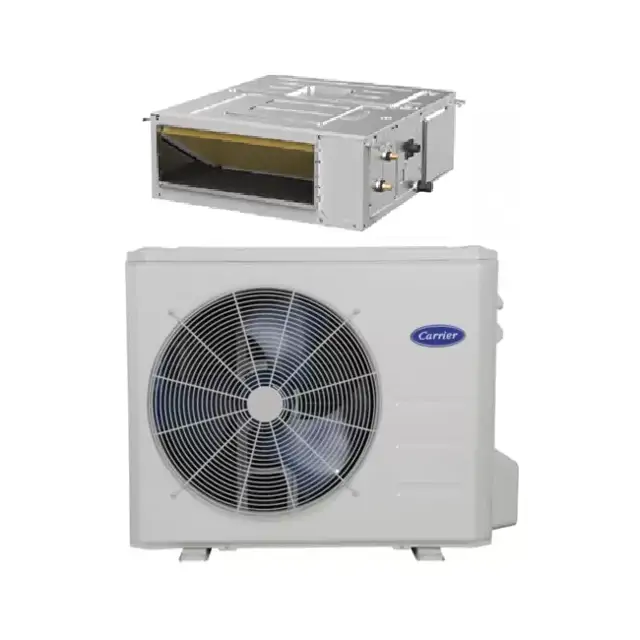

Carrier Ceiling-Suspended Fan Coil Unit 38HDR-5-060

Condensate Drainage System Check

Remove grille and frame from the unit

Insert a water bottle into the fan coil unit and fill drain pan

Is water flowing steadily from the drain pan?

If water is not flowing steadily, describe the issue

Ensure all wiring connections are correct and tight

Check that all barriers, covers, and panels are in place

Ensure filters and return-air grilles are installed and discharge louvers are positioned correctly

Complete the Start-Up Checklist on page CL-1

Place a plastic sheet on the floor to catch any water that may spill from the drain pan

Remove the intake grille and distribution assembly

Let water drain into a 3-gallon bucket

Remove the 4 screws holding the drain pan

Carefully hold the drain pan to remove it from the assembly

Remove any dirt or obstruction from discharge opening.

Use a garden hose to spray water on the coil.

Describe any debris removed from between coil fins.

Outdoor Unit Inspection and Cleaning

Clean or replace air filters in the indoor unit

Clean the indoor unit drain pan

Clean the indoor unit drain pipe

Remove any obstructions from the drain pan and pipe

Note any maintenance procedures for the outdoor units as per individual unit installation instructions
