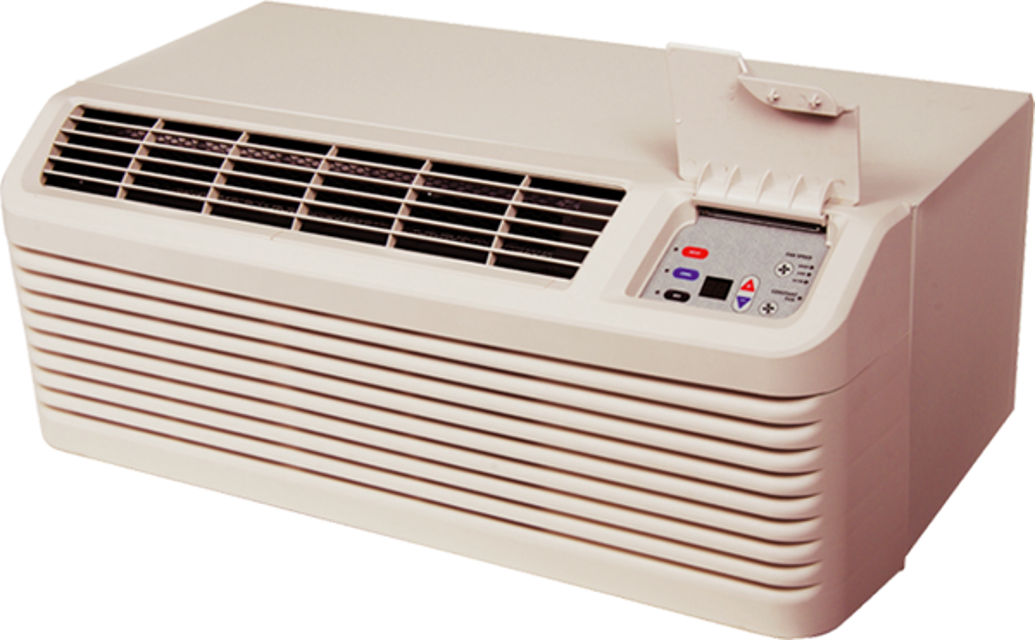

Amana Heat Pumps PMH093

Remove the chassis from the wall sleeve

Capture the refrigerant from the system

Debraze the inlet and discharge tubing from the outdoor coil

Remove all screws from the sides of the outdoor coil securing the shroud to the coil

Press the tabs on the right side of the shroud to separate the shroud from the outdoor coil

Does the model have a four piece condenser shroud?

Remove the two screws securing the outdoor coil to the base pan

Carefully lift the outdoor coil over the basepan lip

Remove the two mounting screws, one on each side of the control board cover

Tilt the control panel out and disconnect ribbon connector from control board

Disconnect all wiring to the control board

Label the wires to ensure proper reassembly

Disconnect all power sources to the unit

Verify that multiple power sources are not present

Remove screws securing the chassis to the wall sleeve

Carefully slide chassis out of wall sleeve

Remove the two mounting screws, one on each side of the control board cover

Disconnect ribbon connector from control board

Disconnect all wiring to the capacitor

Remove the screw securing the capacitor mounting clamp to the center partition

Check that all parts are in place after reassembly

Describe any issues encountered during the procedure

Confirm that the capacitor check is complete

Disconnect all power sources before servicing or installing the unit

Verify multiple power sources are not present

Measure the voltage across terminals L1 and L2 of the outlet

Is there a voltage reading across terminals L1 and L2?

Identify potential issues if no voltage reading is present

Describe the repairs needed if issues are identified
