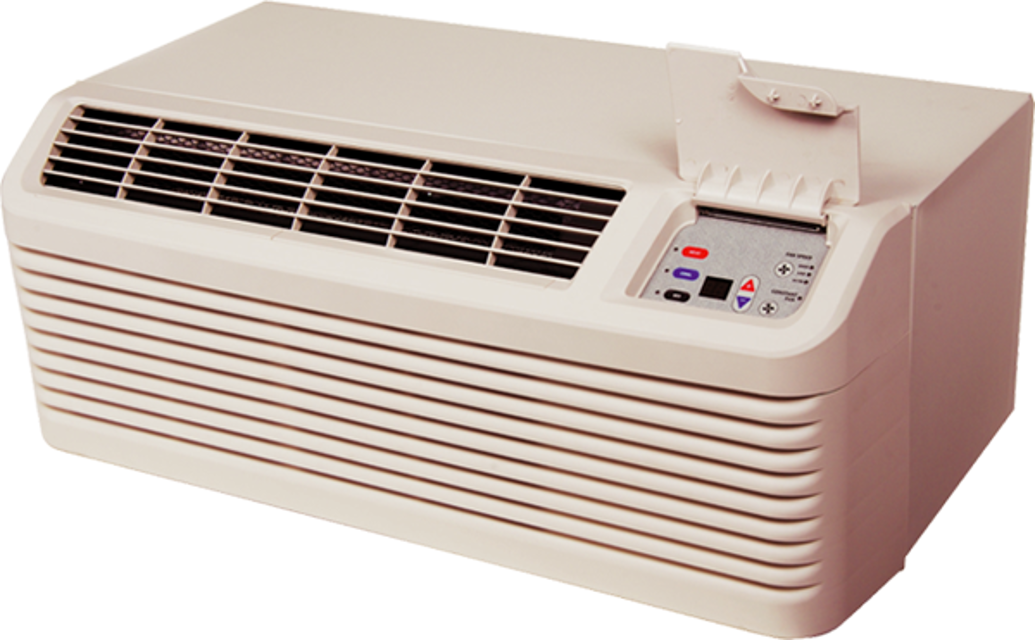

Amana Heat Pumps HEH094

Front Panel and Control Knobs Removal

Remove the unit front by tilting the bottom of the front outward and then lift the front straight up

Remove the control knobs on the control panel cover by pulling upward on the knobs

Remove the control panel cover by removing the two screws holding the control panel cover

Tilt the control panel forward to gain access to the wires

Remove the power cord clamp located near the bottom right of the chassis

Remove the chassis from the wall sleeve

Capture the refrigerant from the system

Debraze the inlet and discharge tubing from the outdoor coil

Remove all screws from the sides of the outdoor coil securing the shroud to the coil

Press the tabs on the right side of the shroud to separate the shroud from the outdoor coil

For 'E-K' models, ensure the condenser shroud is disassembled

Remove the two screws securing the outdoor coil to the base pan

Carefully lift the outdoor coil over the basepan lip

Remove the two screws securing the front to the chassis

Grasp the cabinet front as shown

Pull the bottom of the cabinet front away from the chassis until the retaining clips disengage

Lift the cabinet front off the chassis

Reinstall the cabinet front by reversing the removal procedure

Front Cover and Control Board Cover Removal

Remove the two mounting screws on each side of the control board cover

Disconnect ribbon connector from control board

Control Board Wiring Disconnection

Disconnect all wiring to the control board

Label the wires to ensure proper reassembly

Remove Chassis from wall sleeve

Remove P clamp securing vent door control cable to center partition and disconnect cable from vent door

Remove vent door by opening door and pulling hinge tabs out of slots in center partition

Remove the door by pulling hinge tabs out away from the center partition
