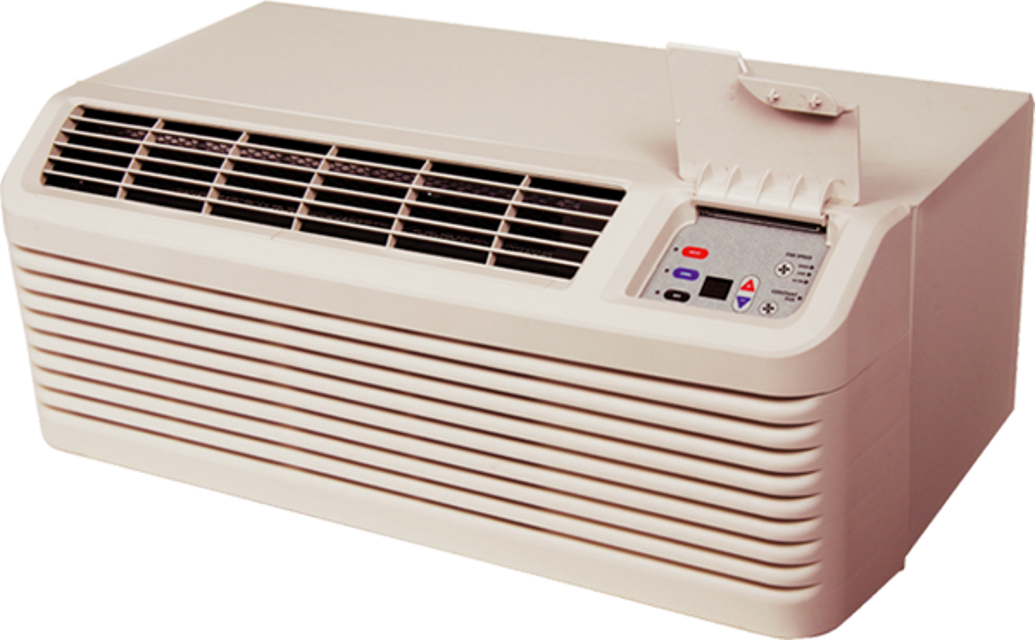

Amana Heat Pumps PMH074

Need answers fast?
Explore the manual using AI.

Amana Heat Pumps PMH074
Amana Heat Pumps PMH074

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Amana Heat Pumps PMH074

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Amana Heat Pumps PMH074

Amana Heat Pumps PMH074

Create an account to install this asset package.

Maintenance Plans for Amana Heat Pumps Model PMH074

Integrate maintenance plans directly into your work orders in MaintainX.

Escutcheon, Control Board And Control Panel Removal

Check mark

Front Cover Removal

Check mark

Remove front cover

Check mark

Control Board Cover Removal

Check mark

Remove the two mounting screws, one on each side of the control board cover

Check mark

Tilt the control panel out and disconnect ribbon connector from control board

Check mark

Control Board Disconnection

Check mark

Disconnect all wiring to the control board

Check mark

Label the wires to ensure proper reassembly

Check mark

Thermistor Removal

Run this procedureArrow right

Cooling Performance Thermometer Check

Check mark

WARNING: NEVER TEST OPERATION WITHOUT THE UNIT IN THE WALL SLEEVE

Check mark

Describe any changes in design specifications for air movement

Check mark

Ensure the unit is installed in the wall sleeve

Check mark

Check condenser cleanliness

Check mark

Cooling Performance Test Thermometers

Check mark

Use appropriate thermometers

Check mark

Secure thermometers in proper locations

Check mark

Observe thermometer readings without touching or moving them

Run this procedureArrow right

Evaporator Maintenance

Check mark

Disassembly

Check mark

Remove front cover

Check mark

Remove the two mounting screws from the control board cover

Check mark

Tilt the control panel out and disconnect ribbon connector from control board

Check mark

Remove the two screws securing the top screen to the evaporator assembly

Check mark

Remove screws on mid partition panel and shift out of the way

Check mark

Remove the two screws securing the heater assembly to the evaporator

Check mark

Pull heater assembly up and out of the chassis

Check mark

Disconnect all wiring to the heater assembly and remove the assembly

Run this procedureArrow right

Voltage Check

Check mark

Safety Precautions

Check mark

Disconnect all power sources before servicing or installing the unit

Check mark

Voltage Measurement

Check mark

Measure the voltage across terminals L1 and L2 of the outlet using a voltmeter

Check mark

Is there a voltage reading across terminals L1 and L2?

Check mark

Troubleshooting

Check mark

Identify possible issues if no voltage reading is present

Check mark

Describe the repairs needed if any issues are identified

Run this procedureArrow right

Cooling Performance Check

Check mark

Temperature Recording

Check mark

Record dry bulb temperature of return air at conditioner (Step A)

Check mark

Record dry bulb temperature of air leaving conditioner (Step B)

Check mark

Ensure dry bulb thermometer temperature on sling psychrometer is within ±1°F of return air thermometer reading (Step C)

Check mark

Record wet bulb temperature on sling psychrometer

Check mark

Temperature Difference Calculation

Check mark

Calculate temperature difference by subtracting Step B from Step A

Check mark

Use Cooling Range Chart to determine cooling range based on calculated temperature difference

Check mark

Example Verification

Run this procedureArrow right
