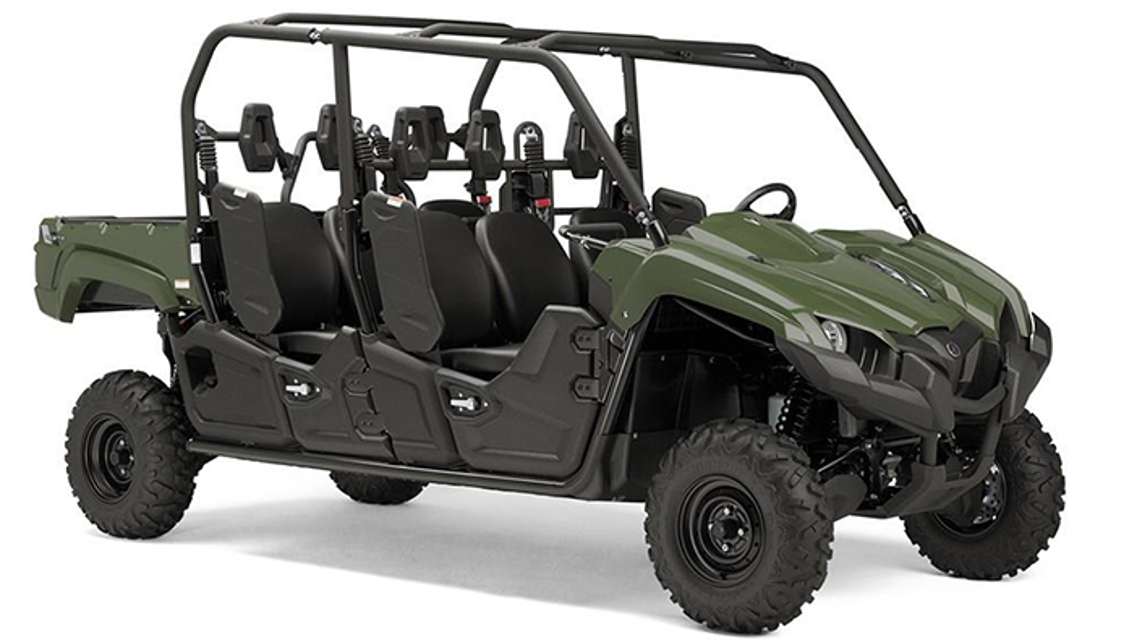

Yamaha Vehicle YXC70VPRM

Ensure the vehicle is on a stable and flat surface

Turn off the engine and remove the key

Check the condition of all tires

Are all tires of the same size and type as recommended?

Select the tires to be replaced

Remove the quick fastener screws and bolts

Adjust gap and clean spark plug

Replace spark plug if necessary

Air Induction System Inspection

Check air induction system components for damage

Replace any damaged parts if necessary

Check breather hose for cracks or damage.

Replace breather hose if necessary.

Check for leakage in the exhaust system.

Check for looseness and tighten all screw clamps and joints if necessary.

Replace gasket(s) if necessary.

Check the air cut-off valve, reed valve, and hose for damage.

Shift the drive select lever into low gear “L”

Check the parking brake lever free play

Is the parking brake lever free play within the maximum limit of one click?

Release the parking brake lever

Adjust the parking brake lever free play

Slide the rubber cover back on the parking brake cable

Turn the adjusting nut to adjust the free play
