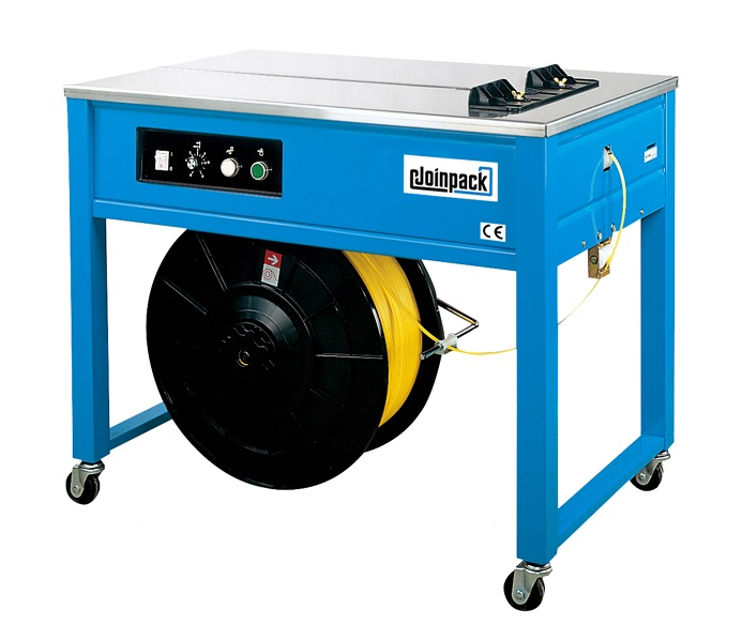

Jia-In Industry Semi-Auto Strapping Machine ES-101
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Jia-In Industry Semi-Auto Strapping Machine ES-101
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Jia-In Industry Semi-Auto Strapping Machine ES-101
Create an account to install this asset package.
Maintenance Plans for Jia-In Industry Semi-Auto Strapping Machine Model ES-101
Integrate maintenance plans directly into your work orders in MaintainX.
Strap Tension Adjustment
Preparation
Ensure all necessary tools are available
Verify that the equipment is powered off
Adjustment Process
Identify the adjustment nuts
Is adjustment nut B fixed by a lock nut?
Turn adjustment nut A clockwise to increase tension
Turn adjustment nut A counter clockwise to decrease tension
Post Adjustment
Strap Width Adjustment
Preparation
Gather necessary tools, including a Philips screwdriver.
Adjustment of Strap Guides
Loosen the screws on the first strap guide.
Adjust the first strap guide to ensure a clearance of 0.5 mm to 1.0 mm between the strap and the guide.
Tighten the screws on the first strap guide.
Loosen the screws on the second strap guide.
Adjust the second strap guide to ensure a clearance of 0.5 mm to 1.0 mm between the strap and the guide.
Tighten the screws on the second strap guide.
1 Weekly Semi-Auto Strapping Machine Maintenance
Safety Precautions
Pull out the plug before removing any enclosures for maintenance or service
Sealer Housing Assembly Maintenance
Blow out the sealer housing assembly
Lubrication
Apply a few drops of light lubricant to oil holes
Apply a few drops of light lubricant on sliding parts
Parts for Jia-In Industry Semi-Auto Strapping Machine ES-101
Access the parts list for your equipment in MaintainX.
Pull Shaft
S13-110001
Spring #227
S13-110002
Sprocket
S13-110003
Pulley (A) #18
S13-110004-02
Chain 35x44L
S13-110005
Pull Shaft
S13-110001
Spring #227
S13-110002
Sprocket
S13-110003
Pulley (A) #18
S13-110004-02
Chain 35x44L
S13-110005
Pull Shaft
S13-110001
Spring #227
S13-110002
Sprocket
S13-110003
Pulley (A) #18
S13-110004-02
Chain 35x44L
S13-110005
