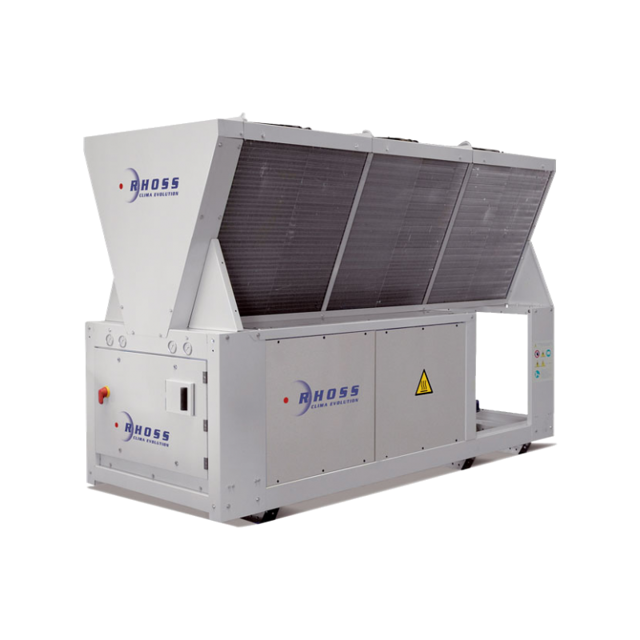

Untes Air Cooled Scroll Chiller THAETY–THAESY 4180
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Untes Air Cooled Scroll Chiller THAETY–THAESY 4180
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Untes Air Cooled Scroll Chiller THAETY–THAESY 4180
Create an account to install this asset package.
Maintenance Plans for Untes Air Cooled Scroll Chiller Model THAETY–THAESY 4180
Integrate maintenance plans directly into your work orders in MaintainX.
6 Monthly Compressor Oil Check
Pre-Inspection
Ensure the compressor is running
Is the oil level visible through the sight-glass?
Oil Level Inspection
Record the oil level in the sight-glass
Is there any foam present during operation?
Foam Analysis
Is the foam presence prolonged and excessive?
Describe any unusual foam behavior observed
Compressor Oil Level Adjustment
Preparation
Ensure the unit is switched off
Oil Level Check with Unit Off
Is the oil level partially covering the sight-glass on the level matching tube?
Oil Level Check with Unit On
Switch on the unit and ensure it is in nominal conditions
Is the oil level clearly visible through the sight-glass and flat without ripples?
Oil Topping-Up Procedure
Pump-out the compressors
6 Monthly Unit Check
Electrical Inspection
Check power consumption of the unit
Check contactors on the electric panel
Motor and Fan Inspection
Ensure motors and fan blades are clean
Verify motor cleanliness and absence of impurities
Gas and Pressure System Check
Check gas charge and humidity in circuit
Ensure there are no gas leaks
12 Monthly Heat Exchanger Inspection
Safety Precautions
Wear suitable personal protective equipment
Initial Inspection
Measure the pressure-drop between the inlet and outlet pipes
Is the pressure-drop within the specified range?
Cleaning Procedure
Is there incrustation or clogging detected?
Select the acid used for washing
Enter the flow rate of the liquid detergent
Fan Grille Inspection
Safety Precautions
Ensure all fans are turned off before inspection
Do not remove protective grilles under any circumstances
Inspection of Fan Grilles
Check that fan grilles are clear of obstructions
Are all fan grilles free from obstructions and filth?
Post Inspection
Describe any issues found during inspection
Was any maintenance required during inspection?
