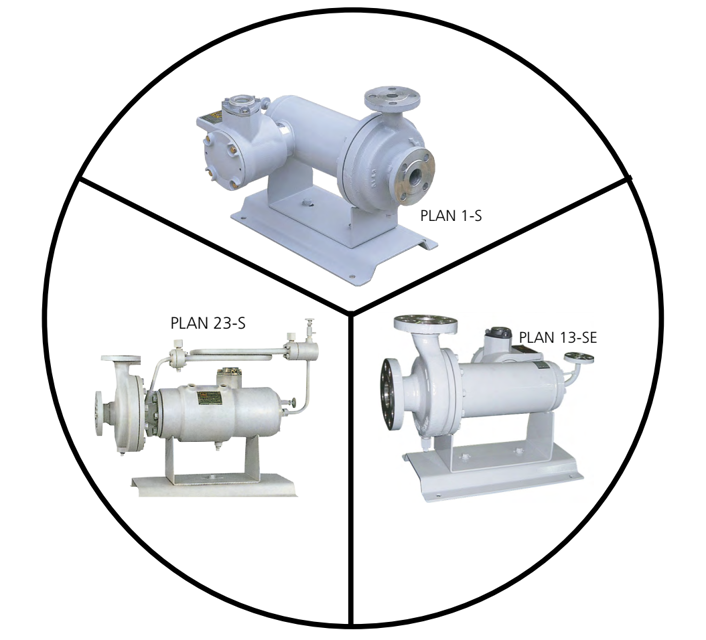

Teikoku Electric Pump F32-2010A4BM-0203P1AV

Shaft Sleeve (17) and Thrust Collar (18) Inspection

Inspect for contact marks or wear

Are there any other contact marks or wear?

Open vent valve slowly and pay attention to liquid, especially for toxic or high temperature liquid

Complete priming in the following order

Bleed air from the air vent valve (36)

If handling a dangerous liquid, did you pay full attention to air venting?

For R & RA-type pumps, are all valves in reverse circulation piping opened?

Adjust valve for R & RA-type pumps

Ensure all valves in the reverse circulation line are fully open during pump operation

Verify correct restriction orifice is installed in the reverse circulation line

Enter the reverse circulation flow rate

Is the reverse circulation flow rate within the specified range?

Filter and Circulation Pipe Inspection

Inspect Filter (03) for blockages or clogs

Inspect Circulation Pipe (34) for blockages or clogs

Does this apply to F and FA plan pumps with circulation pipe construction?

Check TRG meter periodically during operation

Determine bearing changing intervals using color coding system if initial TRG reading is not recorded

Check bearing wear using TRG meter color change

Is the increase of TRG readings 0.3 or more (Yellow)?

Stop the pump and check bearings if TRG reading is Yellow

WARNING: Do not operate if TRG meter condition is RED

During operation: Is the TRG meter in Green zone?
