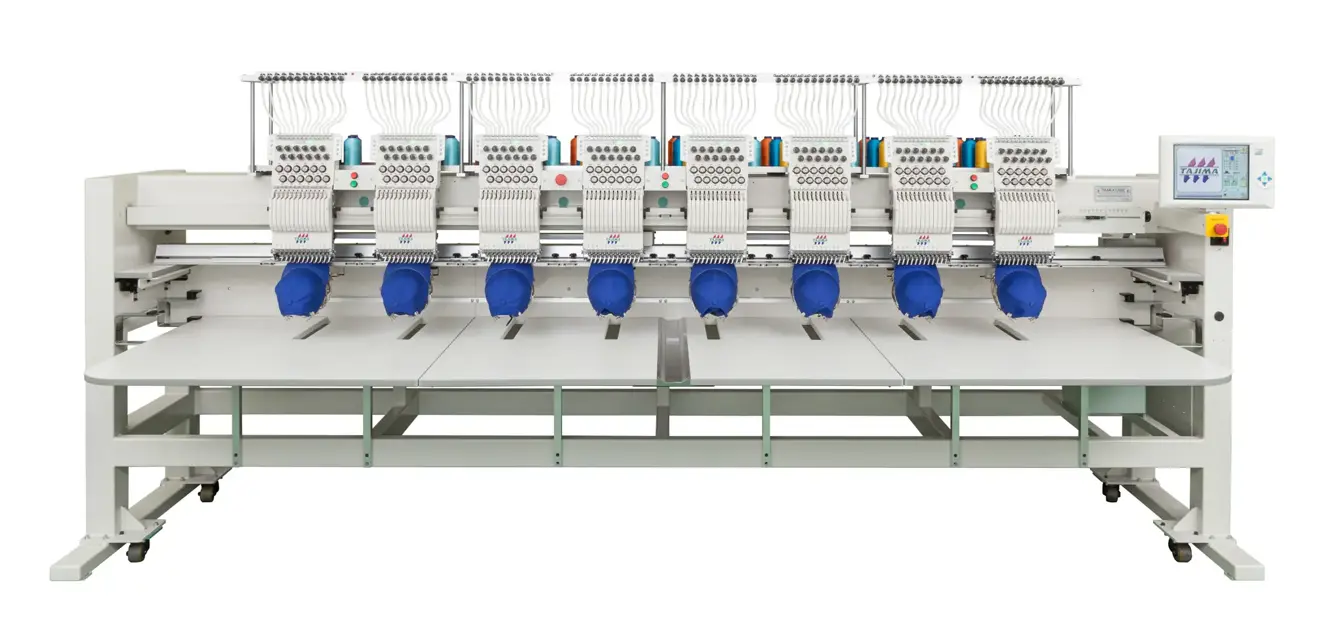

Tajima Embroidery Machine TMAR-K1504C

Turn OFF the power switch before starting the greasing process

Use KING STAR EP NO.2: 400G grease

Apply grease to the ATH cam and steel plate (back of border frame)

Is the greasing process completed successfully?

Turn ON the power switch after completing the greasing process

Turn OFF the power switch before cleaning

Clean each section using appropriate tools

Use the oiler to lubricate the following spots

Did you use Tajima's genuine TF oil or equivalent (VG20)?

Is the lubrication cycle set to once every 5 to 6 hours?

Turn OFF the power switch before cleaning

Press D switch at the tension base twice

Record the number of times cleaned this week

Turn OFF the power switch before starting the greasing process

Use KING STAR EP NO.2: 400G or equivalent grease

Apply grease to the slim cylinder bed

Was the greasing completed successfully?

Verify that all tools and materials are removed from the work area
