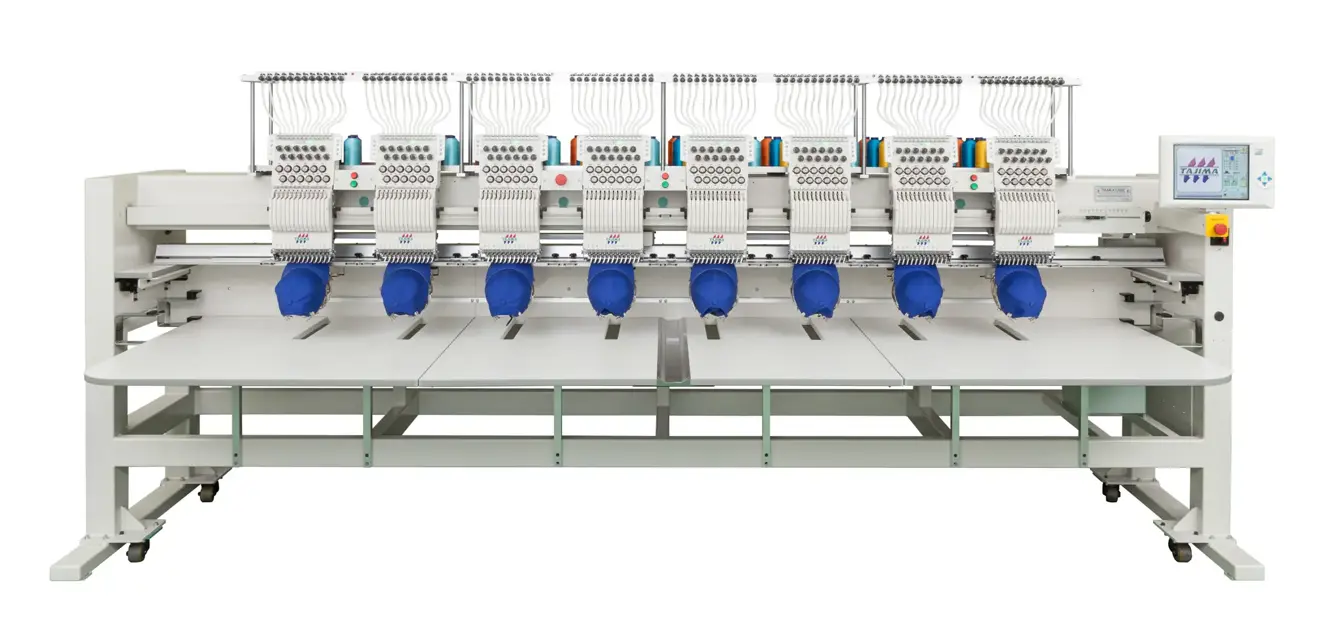

Tajima Embroidery Machine TMAR-K0904C-3260

WARNING: Turn OFF the power switch before cleaning

Ensure the power switch is turned OFF to prevent injury

Cleaning the Presser Foot Shaft

Press D switch at the tension base twice to lower the presser foot to the lower dead point

Clean the surrounding of the presser foot shaft using an air compressor or brush

Was the presser foot shaft cleaned successfully?

Ensure all cleaning tools are stored properly after use

Ensure no moving machine units are active

Verify the use of KING STAR EP NO.2: 400G or equivalent grease

Apply grease to the slim cylinder bed

Ensure even distribution of grease

Turn OFF the power switch before cleaning

Clean each section using appropriate tools

Clean each section using a cleaning tool or an air compressor

WARNING: Turn OFF the power switch before lubrication

CAUTION: Use only Tajima's genuine TF oil or equivalent (Viscosity grade = VG20)

Lubricate the presser foot shaft

Lubricate the slim cylinder bed
