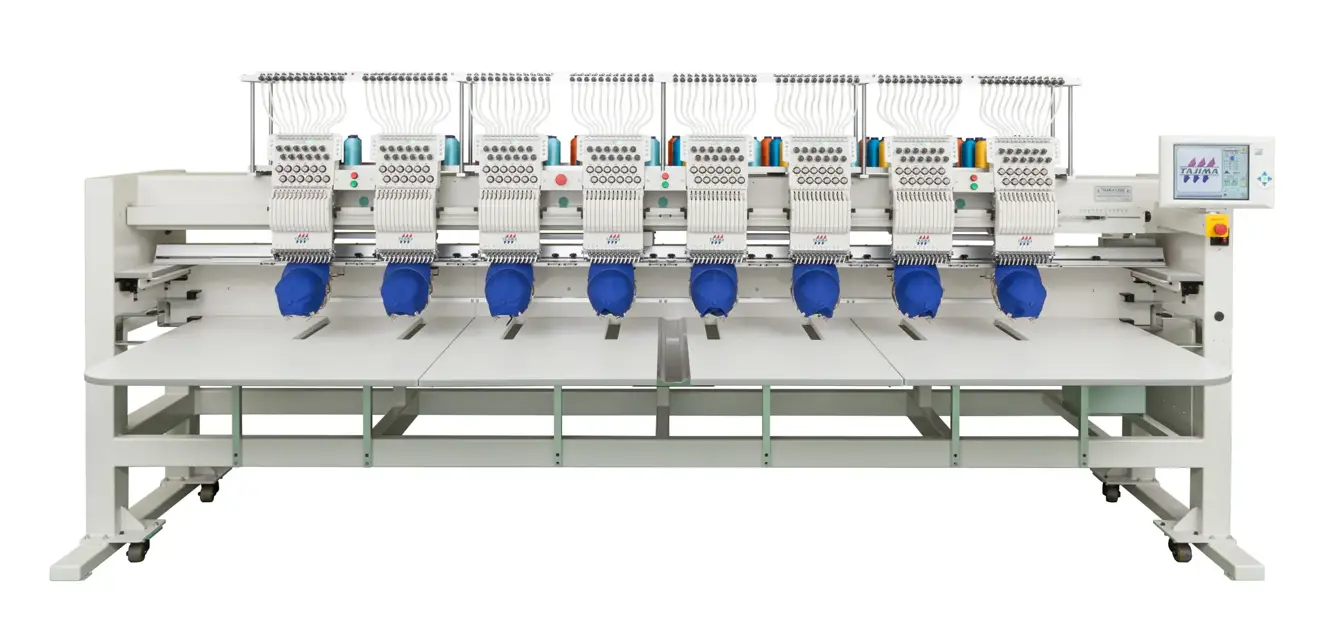

Tajima Embroidery Machine TMAR-K1504C-3260

Turn OFF the power switch before starting the greasing process.

Use KING STAR EP NO.2: 400G or equivalent grease as specified by TAJIMA.

Apply grease to the ATH cam and steel plate (back of border frame).

Was the greasing completed successfully?

Is the machine free from any grease leaks?

Push the pawl inside the hole of the top cover with a thin-tipped stick

Release the locking pawl from the top cover

Detach the snap-fit middle thread guide

Adjust the Stroke of the Thread Take-up Spring

Insert a coin or similar object into the groove of the spring shaft

Turn the spring shaft to adjust the stroke

Reattach the Snap-fit Middle Thread Guide

WARNING: Ensure main power supply is turned off

Inspect each belt in main shaft drive system

Inspect X- and Y-axis drive belts

Clean each section using a cleaning tool or an air compressor

Ensure the machine is powered down to avoid injury

Lubrication of Presser Foot Shaft

Lubricate the presser foot shaft (upper)

Lubricate the presser foot shaft (lower)

Lubrication of Slim Cylinder Bed

Lubricate the slim cylinder bed
