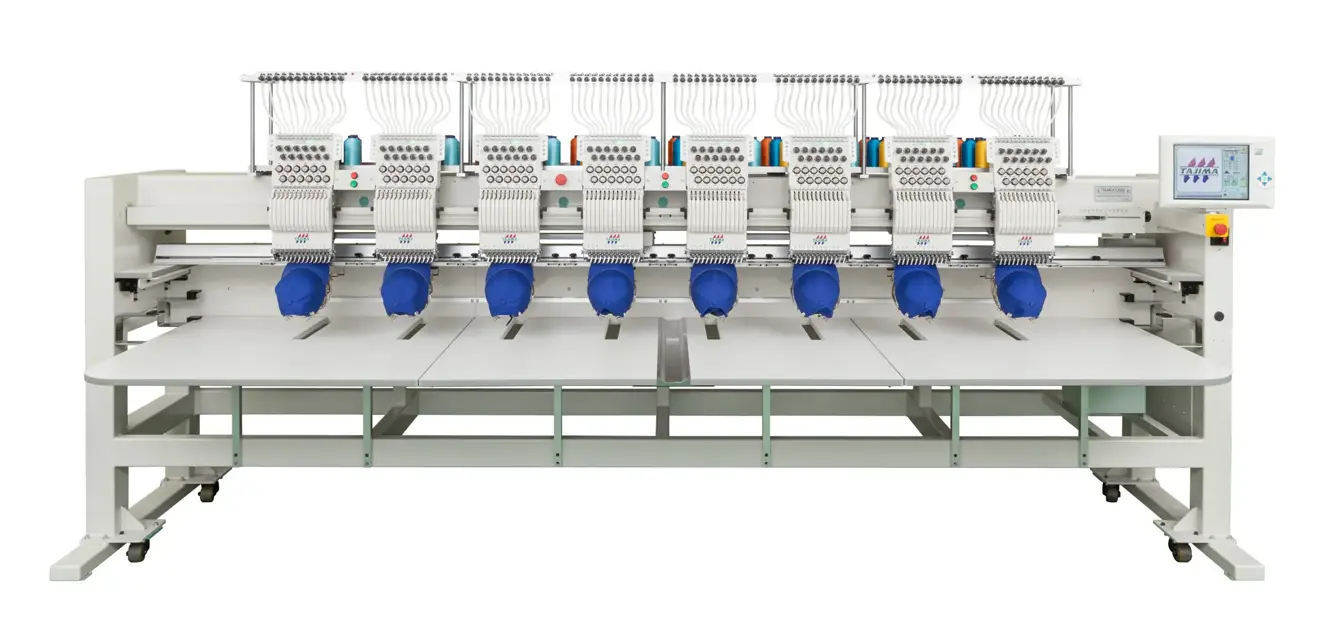

Tajima Embroidery Machine TMAR-K0906C-4260

Clean each section using a cleaning tool or an air compressor

Turn OFF the power switch before starting the greasing process

Use KING STAR EP NO.2: 400G grease or equivalent

Apply grease to the ATH cam and steel plate (back of border frame)

Is the greasing process completed successfully?

Turn ON the power switch after completing the greasing process

Use the oiler to lubricate the following spots

Did you use Tajima's genuine TF oil or equivalent (Viscosity grade = VG20)?

WARNING: Turn OFF the power switch before lubrication

CAUTION: Use only Tajima's genuine TF oil or equivalent (Viscosity grade = VG20)

Ensure lubrication cycle is once per week

Lubricate the presser foot shaft

Turn OFF the power switch before starting the procedure

Use TAJIMA specified grease or equivalent

Ensure the use of NIG LUBE PG: 300ML

Inject grease into the following components
