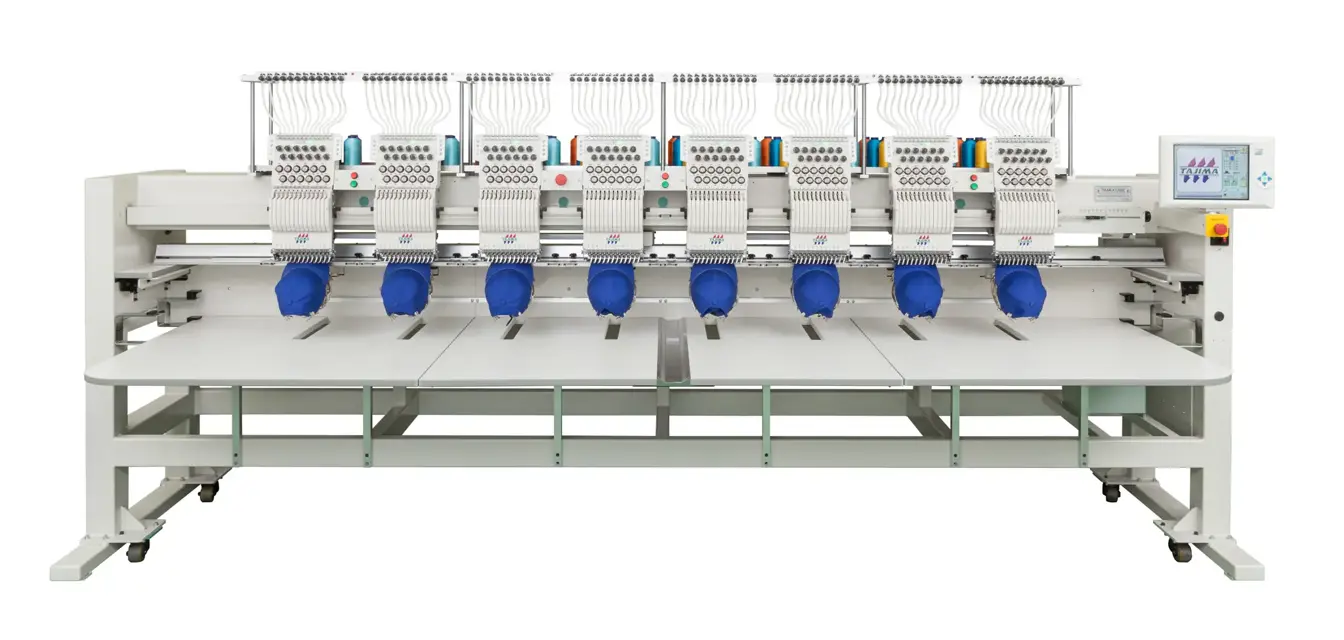

Tajima Embroidery Machine TMAR-K1202C

Turn OFF the power switch before starting the greasing process.

Ensure no moving machine units are in operation.

Use KING STAR EP NO.2: 400G or equivalent grease as specified by TAJIMA.

Consult the distributor if the specified grease is unavailable.

Apply grease to the slim cylinder bed.

Was the greasing completed successfully?

Turn OFF the power switch before starting the greasing process.

Use NIG LUBE PG: 300ML or equivalent grease as specified by TAJIMA.

Inject grease into the following components using a syringe

WARNING: Turn OFF the power switch

Use a cleaning tool or air compressor to clean the 1st tension

Use a cleaning tool or air compressor to clean the head

Is the power switch turned back ON?

Was the cleaning process completed successfully?

Turn OFF the power switch before starting the greasing process

Use KING STAR EP NO.2: 400G grease or equivalent

Apply grease to the ATH cam and steel plate (back of border frame)

Is the greasing process completed successfully?

Turn ON the power switch after completing the greasing process

Ensure no power is supplied to the machine

Use only Tajima's genuine TF oil or equivalent (Viscosity grade = VG20)

Lubricate the rotary hook raceway using the oiler

Lubricate the rotary hook lubrication hole using the oiler
