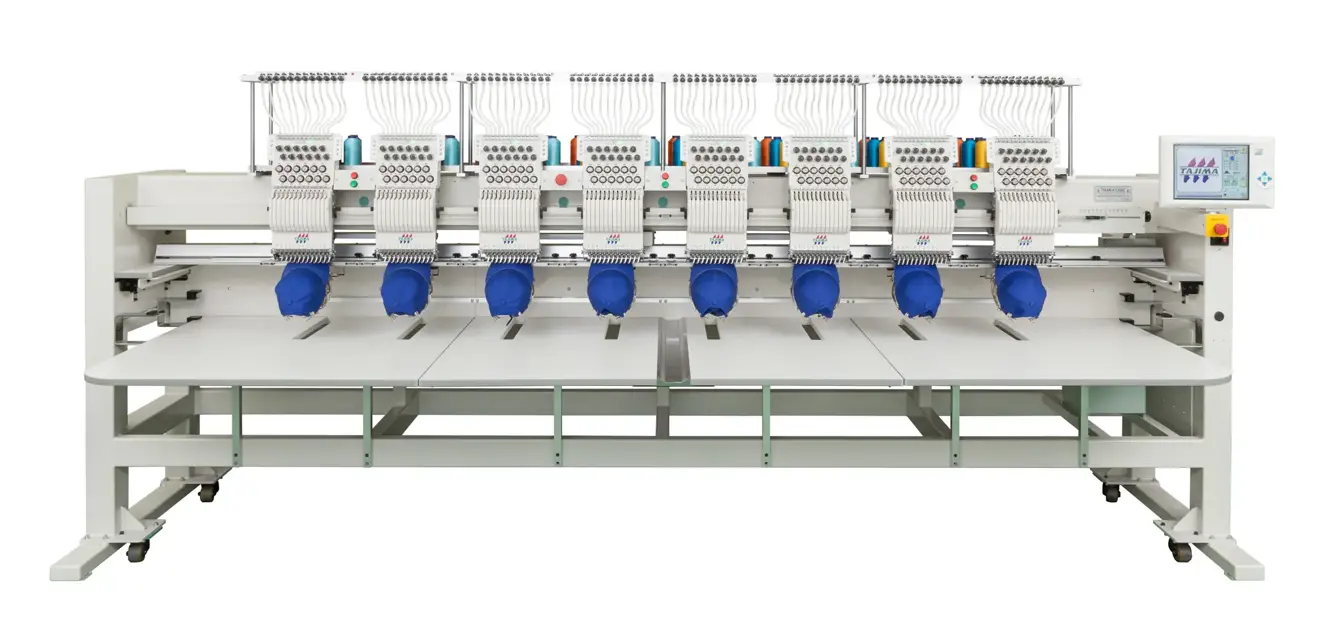

Tajima Embroidery Machine TMAR-K1502C

Turn OFF the power switch before starting the greasing process.

Use KING STAR EP NO.2: 400G or equivalent grease as specified by TAJIMA.

Apply grease to the ATH cam and steel plate (back of border frame).

Is the greasing process completed successfully?

Describe any issues encountered during the greasing process.

Turn OFF the power switch before starting the cleaning process

Clean each section using appropriate tools

Is the machine free of debris after cleaning?

Ensure no moving machine units are in operation

Verify use of TAJIMA specified grease or equivalent

Inject grease into the take-up lever shaft holder

Grease the take-up lever drive lever roller

Ensure no one is near the machine

Use only Tajima's genuine TF oil or equivalent (Viscosity grade = VG20)

Apply oil to the raceway using the oiler

Apply oil to the lubrication hole using the oiler

Push the pawl inside the hole of the top cover with a thin-tipped stick

Release the locking pawl from the top cover

Detach the snap-fit middle thread guide

Adjust the Stroke of the Thread Take-up Spring

Insert a coin or similar object into the groove of the spring shaft

Turn the spring shaft to adjust the stroke

Reattach the Snap-fit Middle Thread Guide
