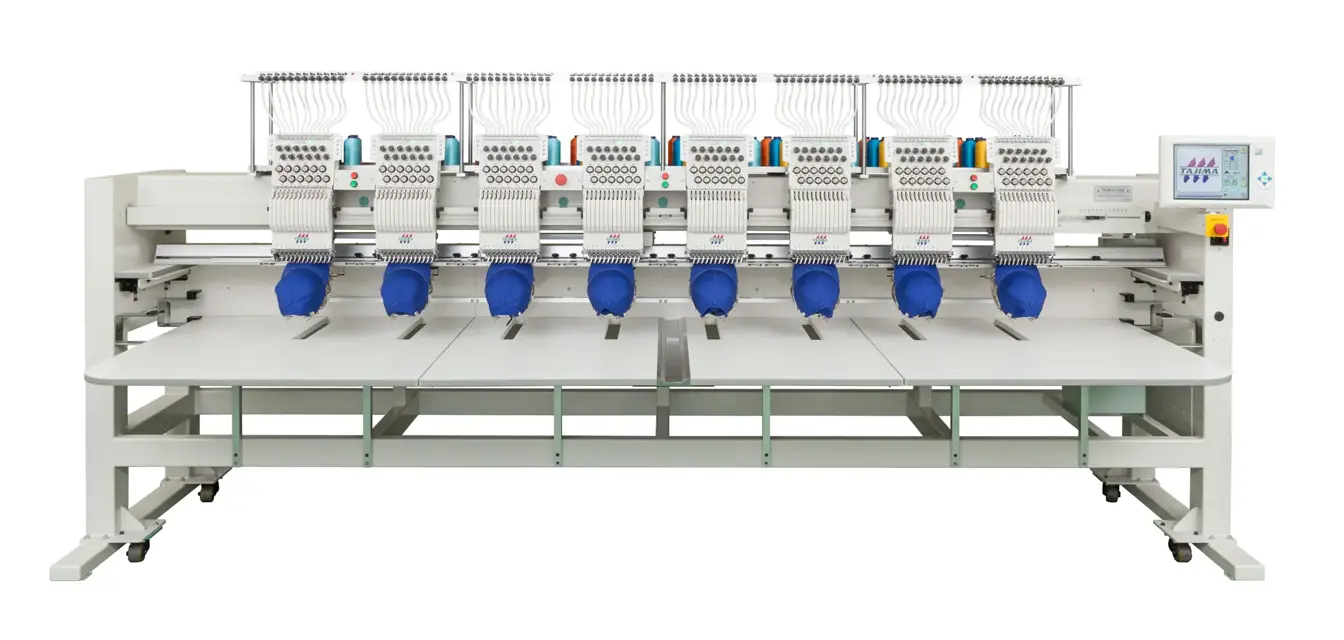

Tajima Embroidery Machine TMAR-K0902C

Turn OFF the power switch before starting the greasing process.

Ensure no moving machine units are in operation.

Use KING STAR EP NO.2: 400G or equivalent grease as specified by TAJIMA.

Consult the distributor if the specified grease is unavailable.

Apply grease to the slim cylinder bed.

Was the greasing completed successfully?

Turn OFF the power switch to avoid injury

Clean each section using a cleaning tool or air compressor

Specify the cleaning cycle frequency

WARNING: Ensure main power supply is turned off

Inspect each belt in main shaft drive system

Inspect X- and Y-axis drive belts

WARNING: Turn OFF the power switch

CAUTION: Use only Tajima's genuine TF oil

Lubricate the presser foot shaft

Lubricate the slim cylinder bed

Turn OFF the power switch before starting the greasing process

Use KING STAR EP NO.2: 400G grease

Apply grease to the ATH cam and steel plate (back of border frame)

Is the power switch turned back ON after greasing?
