SMC Lubricator / Pneumatic Component TL90

Create an account to install this asset package.

Maintenance Plans for SMC Lubricator / Pneumatic Component Model TL90

Integrate maintenance plans directly into your work orders in MaintainX.

2000 Hourly Lubricator / Pneumatic Component Maintenance

Replacement Tasks

Replace AVM’s

Replace engine injector nozzles

Cleaning Tasks

Clean fuel pump

Inspection Tasks

Check valve clearance

Is the valve clearance within the specified range?

Run this procedure

1000 Hourly Lubricator / Pneumatic Component Maintenance

Engine Fan Belt Replacement

Remove the old engine fan belt

Install the new engine fan belt

Check the tension of the new fan belt

Fuel Pipe Replacement

Remove the old fuel pipes

Install the new fuel pipes

Inspect for any leaks in the new fuel pipes

Fuel Tank Cleaning

Run this procedure

500 Hourly Lubricator / Pneumatic Component Maintenance

Filter Replacement

Replace fuel filter

Replace air filter

Engine Inspection

Check engine fan belt tension & condition

Check fuel pipes and rubber parts

Control Panel Maintenance

Clean control panel

Run this procedure

1 Daily Lubricator / Pneumatic Component Maintenance

Engine Oil Check

Enter the current engine oil level

Is the engine oil level within the acceptable range?

Air Filter Maintenance

Was the air filter cleaned?

Bund Check and Drainage

Is there any liquid in the bund?

Drain the bund if necessary

Run this procedure

125 Hourly Lubricator / Pneumatic Component Maintenance

Battery Maintenance

Check battery condition

Check battery connections

Cooling System Maintenance

Clean cooling system

Hydraulic Power Pack Maintenance

Check hydraulic power pack oil level

Is the hydraulic power pack oil level adequate?

Run this procedure

Unlock efficiency
with MaintainX CoPilot

MaintainX CoPilot is your expert colleague, on call 24/7, helping your team find the answers they need to keep equipment running.

Reduce Unplanned Downtime

Ensure your team follows consistent procedures to minimize equipment failures and costly delays.

Maximize Asset Availability

Keep your assets running longer and more reliably, with standardized maintenance workflows from OEM manuals.

Lower Maintenance Costs

Turn any technician into an expert to streamline operations, maintain more assets, and reduce overall costs.

Thousands of companies manage their assets with MaintainX

More from SMC

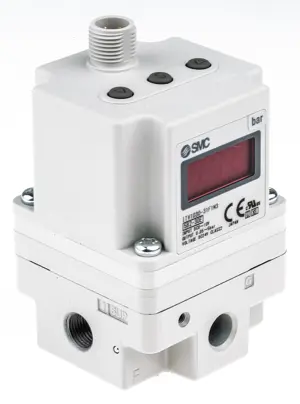

Electro-Pneumatic Regulator
