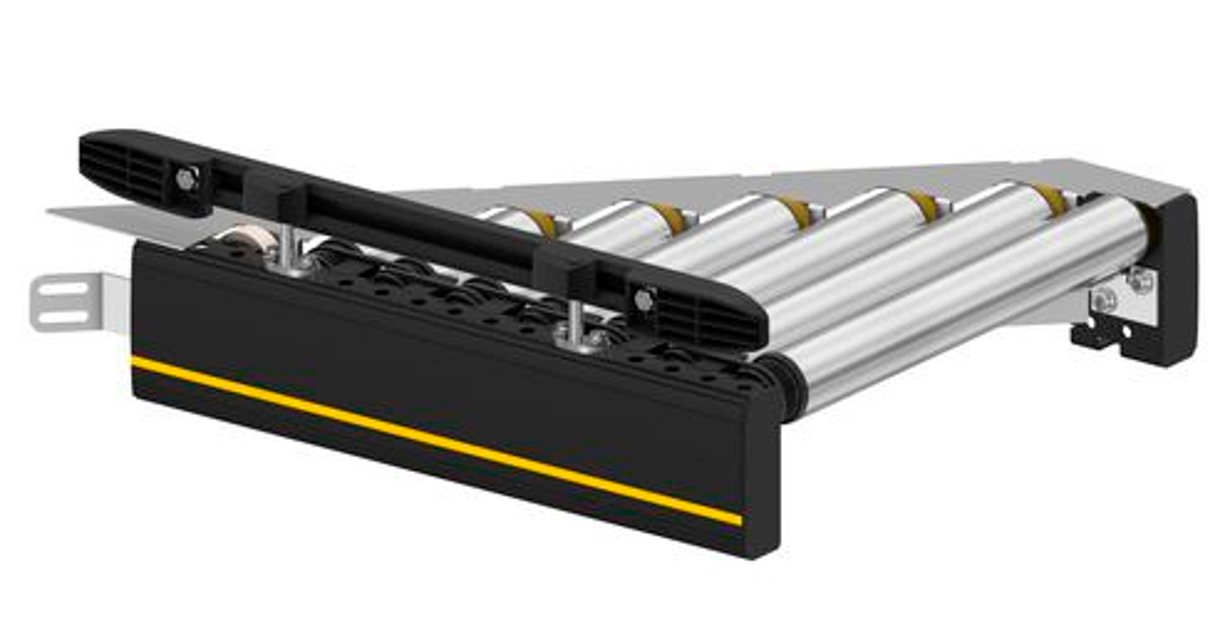

Interroll Drum Motor RM8330

De-energize the module and ensure it cannot be started accidentally.

Close the pocket holes using clips

Pull motor connecting cable (8) out of the control system or extension cable.

Remove the roller clip (2) using needle-nose pliers.

Unscrew ribbed nut (6) on the cable side of the RollerDrive (3) and remove together with the tab (7).

De-energize the module and ensure it cannot be started accidentally.

Remove side cover on both sides

Unscrew serrated flange bolt on the inside of the curve of the RollerDrive.

Unscrew ribbed nut on the outside of the curve (cable side) of the RollerDrive.

Slightly turn RollerDrive horizontally.

Remove drive belt from RollerDrive.

Check screw connections for the following modules

Are all screw connections intact?

Tighten screws to applicable standard as required

Record any deviations or issues found during tightening

Refer to the operating manual for permissible temperatures and note any concerns

De-energize the module and ensure it cannot be started accidentally

Remove side cover on both sides

Uninstall the respective rollers

Slightly turn rollers horizontally and remove the drive belt

Is the module out of operation?

Loosen side cover (2) from the side frame.

Remove the side guide support (4).

Open the cover of the universal support (7) with a tool and swivel it down.

Loosen the hexagon nuts (6), but do not remove them.

Slightly turn the clamping plate (3) with the complete universal support and remove it from the C-profile of the side frame.
