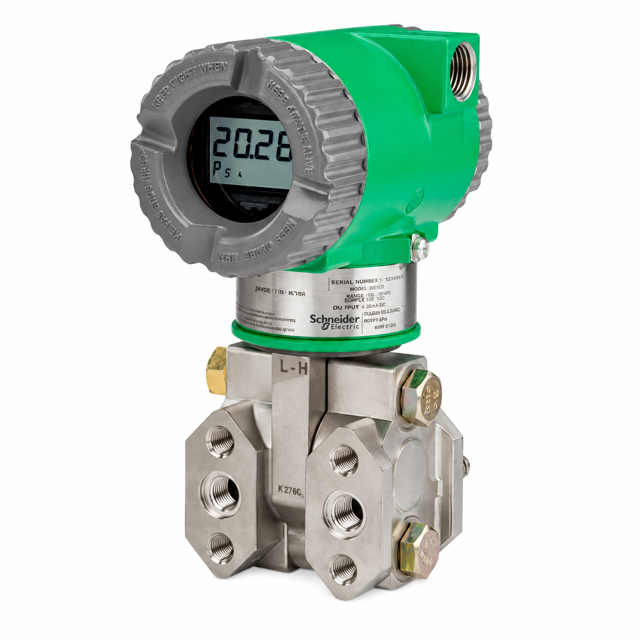

Schneider Electric Pressure Transmitter IDP05S-V

Need answers fast?
Explore the manual using AI.

Schneider Electric Pressure Transmitter IDP05S-V
Schneider Electric Pressure Transmitter IDP05S-V

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Schneider Electric Pressure Transmitter IDP05S-V

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Schneider Electric Pressure Transmitter IDP05S-V

Schneider Electric Pressure Transmitter IDP05S-V

Create an account to install this asset package.

Maintenance Plans for Schneider Electric Pressure Transmitter Model IDP05S-V

Integrate maintenance plans directly into your work orders in MaintainX.

Pressure Transmitter Terminal Block Assembly Replacement

Check mark

Safety Precautions

Check mark

De-energize transmitters before removing threaded housing covers

Check mark

Ensure no flammable or combustible atmosphere is present before disconnecting equipment

Check mark

Disassembly

Check mark

Turn off the transmitter power source

Check mark

Turn the cover lock screw clockwise to disengage the lock (if applicable)

Check mark

Remove the covers from the field terminals and electronics compartments by rotating counterclockwise

Check mark

Remove the digital display by rotating it counterclockwise (if applicable)

Check mark

Loosen the two captive screws and remove the electronics module from the housing

Run this procedureArrow right

Pressure Transmitter SV Rerange Calibration

Check mark

Initial Setup

Check mark

Is the FoxCalTM feature enabled?

Check mark

Rezero the transmitter output once it has stabilized at the final operating temperature.

Check mark

Calibration Check

Check mark

Perform a two-point calibration if FoxCalTM is enabled.

Check mark

Check underrange and overrange output values to ensure they extend beyond 4 and 20 mA, respectively.

Check mark

Zero Reading Check (DP Transmitters Only)

Check mark

Return the output to linear mode for zero reading check.

Check mark

Return the transmitter output to square root mode after zero check is complete.

Run this procedureArrow right

Pressure Transmitter Zero Adjustment

Check mark

Transmitters with the Optional Display

Check mark

Unlatch the external zero button by turning it 90 degrees counterclockwise

Check mark

Check for possible messages on the display

Check mark

Relatch the external zero button by turning it 90 degrees clockwise

Check mark

Set or Reset Using the Optional Display

Check mark

Apply zero pressure to the transmitter or use a bypass valve to equalize pressure

Check mark

Press the external zero button until the display reads CAL AT0, then release

Check mark

Wait for the display to read AT0done to complete calibration

Check mark

Apply the lower range value (LRV) pressure to the transmitter

Run this procedureArrow right

Pressure Transmitter Two-Point Field Calibration

Check mark

Preparation

Check mark

Ensure the FoxCalTM feature is enabled before starting calibration

Check mark

Is the input pressure accuracy at least four times better than the transmitter’s reference accuracy specification?

Check mark

Calibration Process

Check mark

Perform calibration at LRV and URV points

Check mark

Disable FoxCalTM feature if performing two-point calibration

Check mark

Rezero the transmitter output after stabilization at final operating temperature

Check mark

Check underrange and overrange output values to ensure they extend beyond 4 and 20 mA, respectively

Check mark

For DP transmitters, return output to linear mode before zero check and back to square root mode after

Run this procedureArrow right

Pressure Transmitter Calibration

Check mark

Preparation

Check mark

Ensure the transmitter is not write protected

Check mark

Disable FoxCalTM if performing a two-point calibration

Check mark

Ensure the transmitter is in normal operating mode

Check mark

Access Calibration Mode

Check mark

Press the NEXT button until the display reads CALIB

Check mark

Press the ENTER button to select CALIB

Check mark

Zeroing the Transmitter

Check mark

Select zeroing method

Run this procedureArrow right

Parts for Schneider Electric Pressure Transmitter IDP05S-V

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Heat Sink, 1 Inch

N1214YS

Heat Sink, 1 1/2 Inch

N1214YR

Calibration Screw Fitting

F0101ES

Silicone Lubricant

0048130

Grease, 1.75 Oz. Tube - Lubriplate For Transmitters With Aluminum Housing

X0118CC

Heat Sink, 1 Inch

N1214YS

Heat Sink, 1 1/2 Inch

N1214YR

Calibration Screw Fitting

F0101ES

Silicone Lubricant

0048130

Grease, 1.75 Oz. Tube - Lubriplate For Transmitters With Aluminum Housing

X0118CC

Heat Sink, 1 Inch

N1214YS

Heat Sink, 1 1/2 Inch

N1214YR

Calibration Screw Fitting

F0101ES

Silicone Lubricant

0048130

Grease, 1.75 Oz. Tube - Lubriplate For Transmitters With Aluminum Housing

X0118CC
