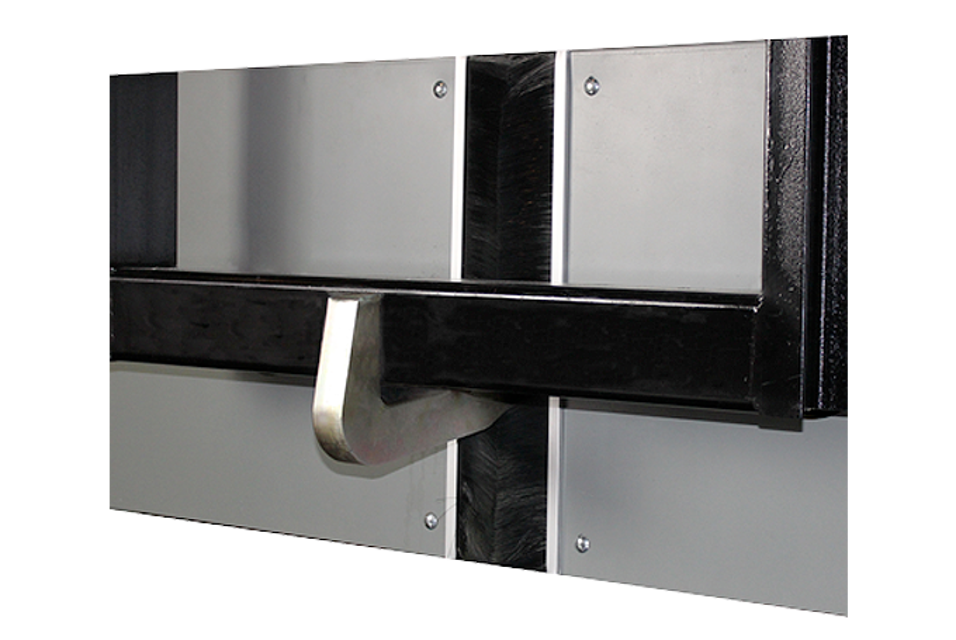

Poweramp Restraint Powerhook KS5

Create an account to install this asset package.

Maintenance Plans for Poweramp Restraint Model Powerhook KS5

Integrate maintenance plans directly into your work orders in MaintainX.

Upper Vertical Limit Adjustment

Preparation

Raise the platform fully and engage the maintenance prop in the service position

Positioning Cylinder Adjustment

Locate the components

Disconnect the hydraulic hose from the hose fitting on the positioning cylinder and cap off the open fittings

Remove the keepers from the positioning cylinder trunnion

Lift up and support the PowerHook cylinder to allow the positioning cylinder to exit the trunnion

Loosen the jam nut on the threaded rod eye of the positioning cylinder

Rotate the positioning cylinder to adjust PowerHook cylinder height

Run this procedure

Lower Vertical Limit Adjustment

Preparation

Raise the platform fully and engage the maintenance prop in the service position

Locate Components

Locate the target bar and proximity switch

Confirm the position of the target bar and proximity switch

Adjust Target Bar

Loosen the bolt that holds the target

Adjust target bar direction

Enter the degree of rotation applied

Run this procedure

Dock Leveler And Vehicle Restraint Interlock Adjustment

Preparation

Ensure the dock leveler is in the cross traffic position before beginning tests.

Back a transport vehicle with RIG bar into dock or use a test fixture to simulate the RIG bar.

Restraint Engage before Leveler Operate (RELO) Interlock Test

Press the RAISE button. Did the dock leveler raise?

If the leveler raised, describe the adjustments made to decrease dimension (A) until the leveler does not raise when the vehicle restraint is not engaged.

Leveler Stored before Restraint Release (LSRR) Interlock Test

Momentarily press the ENGAGE button to activate the vehicle restraint automatic engage cycle.

Raise the dock by pressing the RAISE button until the lip is fully extended, then release the button.

Run this procedure

3 Monthly Restraint Maintenance

Complete Weekly Maintenance

Inspect for damage or abnormal wear

Check welds for cracks

Inspect cylinder pins and mounting holes

Check J-box for water damage

Inspect hoses, cylinders, fittings and powerpack

Inspect control box and conduit for damage

Check bumpers for more than 1” of wear

Replace worn, loose, damaged or missing bumpers

Run this procedure

Reservoir Fluid Level Check

Preparation

Raise the platform fully and engage the maintenance prop in the service position.

Turn OFF all electrical power to the leveler.

Fluid Level Measurement

Remove breather cap (F).

Measure fluid level (G). The fluid level should be approximately 3 in. (76.5 mm) from top of reservoir (E) with platform raised on the maintenance prop.

Is the fluid level approximately 3 in. (76.5 mm) from the top of the reservoir?

Fluid Addition

Is it necessary to add hydraulic fluid?

Run this procedure
