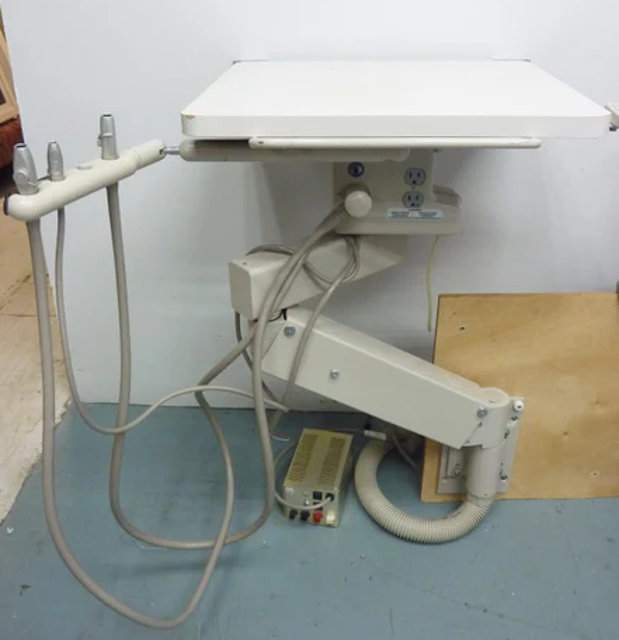

A-Dec Cascade Assistant Wall Mount 3175

Securely hold the cart top so it will not drop, loosen the knob.

Lift or lower the cart top until the work surface is at the desired height.

Firmly tighten the knob. If the top lowers, the knob was not tightened enough.

Rotate the assistant’s arm to the opposite side of the work surface.

Place a leveling device on the work surface.

Determine the tilt direction of the unit

If the unit tilts forward from the wall

Place a leveling device on the work surface

Loosen the bottom two mounting screws

Install the leveling setscrews in the bottom two holes and tighten until level

If the unit tilts toward the wall

Place a leveling device on the work surface

Ensure arm spring tension is adjusted prior to brake adjustment

Is the brake on/off toggle in the ON position?

Check if air pressure is at least 60 psi

Move the brake on/off toggle to the OFF position

Remove the plug from the access hole on the left side of the arm

Push down on the arm until the inner hole lines up with the outer hole, then insert a 5/32" hex key
