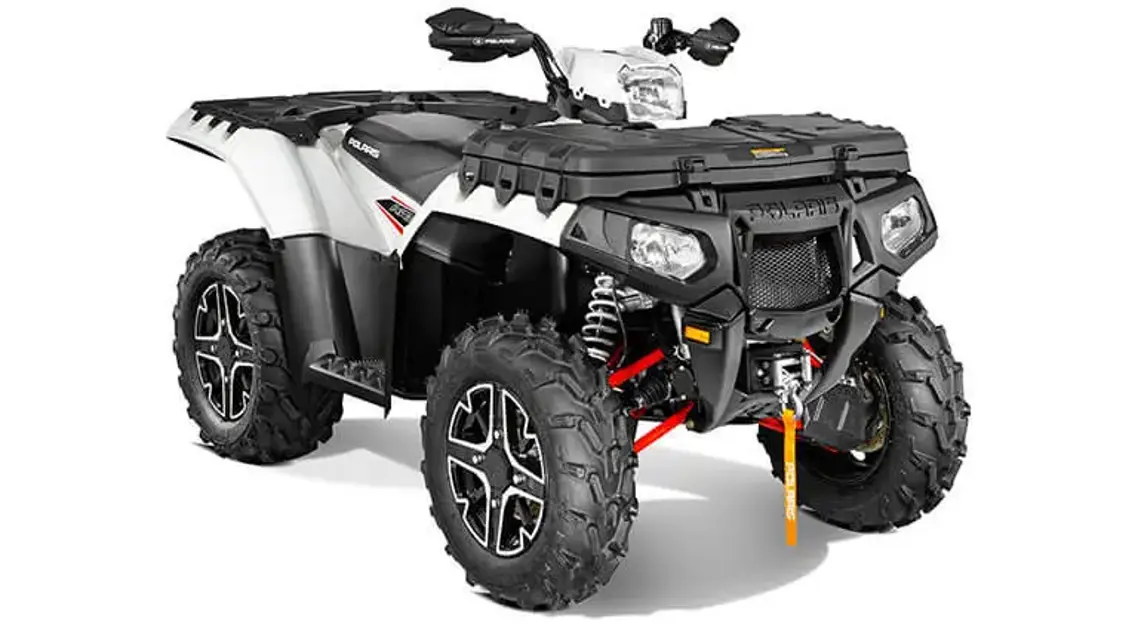

Polaris Vehicle Sportsman 850 XP EPS

Warning: Severe injury or death can result from improper toe alignment and adjustment. Do not attempt to adjust tie rod alignment. All tie rod adjustments should be performed by an authorized POLARIS dealer.

Vehicle positioned on a level surface?

Handlebars in a straight-ahead position?

String tied between two stands and flush with the side of the rear tire?

Distance from the string to the rim at the front

Distance from the string to the rim at the rear

Rear measurement 1.5 mm more than the front measurement?

Measurement procedure repeated on the other side of the vehicle?

If you discover improper alignment, see your POLARIS dealer for service.

Warning: Improperly connecting or disconnecting battery cables can result in an explosion and cause serious injury or death.

When removing the battery, always disconnect the negative (black) cable first. When reinstalling the battery, always connect the negative (black) cable last.

Your ATV is equipped with a sealed battery, which requires little maintenance.

Always keep battery terminals and connections free of corrosion.

Disconnect the black (negative) battery cable first.

Disconnect the red (positive) battery cable last.

Disconnect the battery hold-down strap.

Steering assembly check for loose nuts and bolts

Tire check for wear, improper inflation, non-standard or improperly installed tires

Check brake system for fluid leaks

Check brakes for excessive travel or spongy feel

Check friction pads for wear, damage and looseness

Is the engine coolant level controlled by the recovery system?

Is there any drop in coolant level?

Is the radiator clean and free of debris?

Has the coolant been replaced in the last two years?

Demand drive fluid - Inspect level

Fluid Check 1. Position the vehicle on a level surface. Remove the fill plug. Check the fluid level.

2. Add the recommended fluid as needed to bring the level to the bottom of the fill hole threads.

3. Reinstall the fill plug. Torque to specification.

Demand drive fluid (extreme use) - Change fluid every 25 hours if ADC is subjected to extreme use.

1. Position the vehicle on a level surface. Remove the fill plug.

2. Place a drain pan under the demand drive unit. Remove the drain plug. Allow the fluid to drain completely.

3. Clean and reinstall the drain plug. Torque to specification.
