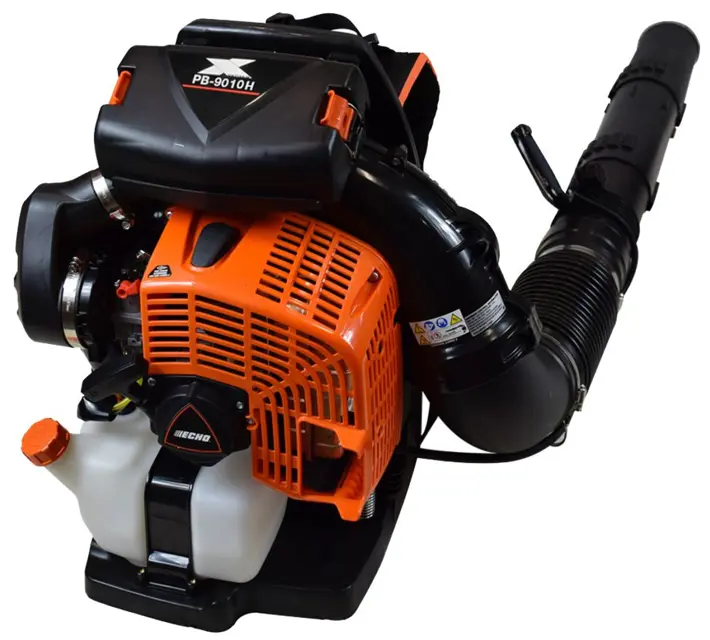

Yamabiko Power Blower PB 9010H

Create an account to install this asset package.

Maintenance Plans for Yamabiko Power Blower Model PB 9010H

Integrate maintenance plans directly into your work orders in MaintainX.

1 Daily Cooling System Maintenance

NOTICE: To maintain proper engine operating temperatures, cooling air must pass freely through the cylinder fin area. This flow of air carries combustion heat away from the engine.

Overheating and engine seizure can occur when:

• Air intakes are blocked, preventing cooling air from reaching the cylinder.

• Dust and grass build up on the outside of the cylinder. This build up insulates the engine and prevents the heat from leaving.

Removal of cooling passage blockages or cleaning of cooling fins is considered “Normal Maintenance.” Any failure attributed to lack of maintenance is not warranted. Clear Debris

1. Brush accumulated debris from intake grill and other cooling passages.

Cleaning Cylinder Fins

1. Disconnect spark plug lead from spark plug.

2. Remove engine cover.

Run this procedure

1 Daily Air Filter Maintenance

1. Close choke (COLD START position). This prevents dirt from entering the carburetor throat when the air filter is removed. Brush accumulated dirt from air cleaner area.

2. Remove air filter cover, foam pre-filter, and air filter. Brush dirt from inside cover.

Foam Pre-Filter:

• Clean foam pre- filter (A) in water/detergent solution and rinse with clean water.

• Wrap the foam pre-filter in a clean, dry cloth and squeeze (do not wring) dry. Allow to dry completely before reuse. Do not oil.

Air Filter:

• Lightly brush debris from air filter (B).;

Run this procedure

3 Monthly Fuel Cap Gasket Inspection

MAINTENANCE PROCEDURE NOTES: Replacement is recommended based on the finding of damage or wear during inspection. Inspect every 3 months.

Fuel cap gasket inspection passed

Is replacement needed?

Upload a photo of the inspected gasket

Sign off on the inspection

Run this procedure

3 Monthly Muffler Spark Arrester Maintenance

NOTICE: Carbon deposits in muffler will cause a drop in engine output and overheating. Spark arrester screen must be checked periodically.

Disconnect spark plug lead from spark plug.

Remove engine cover.

Remove spark arrester screen (C) from muffler. Replace screen if plugged with carbon deposits.

Note: When cleaning carbon deposits, be careful not to damage the catalytic element inside muffler.

Install spark arrester screen.

Install engine cover.

Connect spark plug lead.

Sign off on the maintenance procedure

Run this procedure

3 Monthly Spark Plug Maintenance

MAINTENANCE PROCEDURE NOTES: Replacement is recommended based on the finding of damage or wear during inspection. NOTICE: Use only NGK CMR7H spark plug otherwise severe engine damage can occur.

Remove spark plug and check for fouling, worn and rounded enter electrode.

Clean the plug or replace with a new one. DO NOT sand blast to clean. Remaining sand will damage engine.

Adjust spark plug gap by bending outer electrode.

Tighten spark plug to 102-153 kgf•cm (86-133 lbf•in).

Sign off on the spark plug maintenance

Run this procedure
