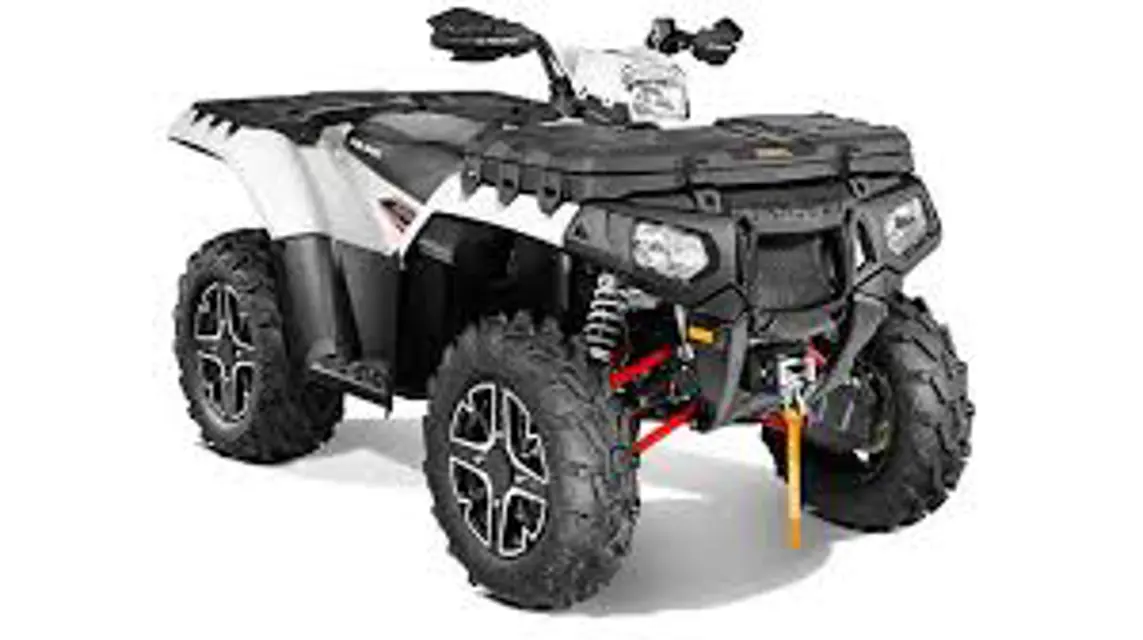

Polaris Vehicle Sportsman 850 XP

Warning: Never run the engine in an enclosed area. Remove any combustible materials from the area. Wear eye protection and leather work gloves. Do not stand behind or in front of the vehicle while purging. Never go under the vehicle while it's inclined. The exhaust system can get extremely hot. Do not perform service on the spark arrestor while the system is hot. Allow components to cool sufficiently before proceeding.

Remove the arrestor clean-out plug from the bottom of the muffler

Quickly squeeze and release the throttle lever several times to purge carbon from the system

If carbon comes out of the exhaust, cover or plug the exhaust outlet(s). Wear protective gloves

Lightly tap on the exhaust pipe with a rubber mallet while repeating step 4

If particles are still suspected to be in the muffler, elevate the rear of the vehicle one foot (30 cm) higher than the front. Block the wheels

Repeat steps 4 to 6 until no more particles are expelled

Is the engine coolant level controlled by the recovery system?

Is there any coolant level drop?

Is the radiator clean and free of debris?

Has the coolant been replaced in the last two years?

Is the engine cool before removing the pressure cap?

Warning: This procedure requires trained personnel with PPE!

Position the vehicle on a level surface. Allow the vehicle to sit for at least 30 minutes before performing the fluid change.

Areas around and on the ADC reservoir and bleeder valves thoroughly cleaned?

Reservoir cap and diaphragm assembly removed?

Debris removed from the fluid and reservoir using a shop towel or suction tool?

Fill the reservoir to the maximum line with fresh fluid.

Protective caps from the bleeder valves removed?

One of the bleeder valve screws slowly loosened (turn counter-clockwise) and allowed fluid and trapped air to flow from the fitting?

Screw tightened when clean fluid begins to flow?

Demand drive fluid - Inspect level

Fluid Check 1. Position the vehicle on a level surface. Remove the fill plug. Check the fluid level.

2. Add the recommended fluid as needed to bring the level to the bottom of the fill hole threads.

3. Reinstall the fill plug. Torque to specification.

Demand drive fluid (extreme use) - Change fluid every 25 hours if ADC is subjected to extreme use.

1. Position the vehicle on a level surface. Remove the fill plug.

2. Place a drain pan under the demand drive unit. Remove the drain plug. Allow the fluid to drain completely.

3. Clean and reinstall the drain plug. Torque to specification.

Warning: High water pressure may damage components. Use a garden hose and mild soap.

Professional-type washing cloth available

Start cleaning the upper body first and the lower parts last.

Rinsed with clean water frequently

Dried surfaces with a chamois to prevent water spots

Avoid the use of harsh cleaners, power washer, and medium to heavy duty compounds.

Used clean cloths and pads for cleaning and polishing

If a high pressure water system is used, avoid directing the water stream at wheel bearings, electrical components, radiator, switches and controls, transmission seals, fuel system components, cab and body panels, labels and decals.
