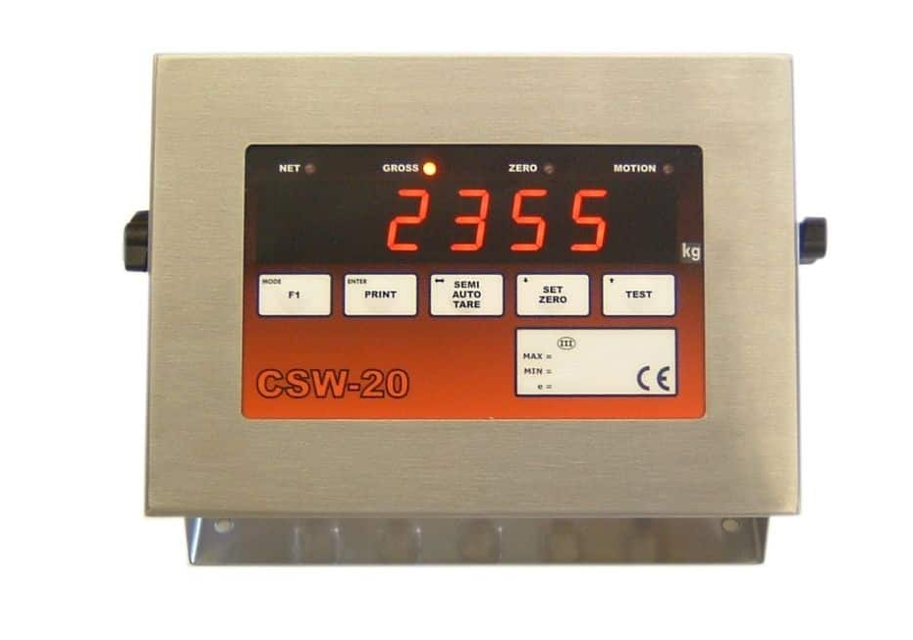

Ian Fellows Weight Indicator CSW-20

In the ENGCFG_ menu a 5 slope 6 point linearity adjust can be made at 20% LiN2, 40% LiN4, 60% LiN6 and 80% lin8 of capacity.

To adjust take reading at 20/40/60/80 of capacity and note error in weight (e/10). If error was +8.2kg then at LRN2 enter –8.2kg to adjust. Adjustment is limited to a max amount equal to 12 scale divisions (12 x DISP)

Note: adjustment only affected between previous and next breakpoint e.g. in stated example between 0 and 40%;

CSW-20 provides five powerful features for optimising weighing performance and display appearance to suit individual applications.

Filter – see FILT & FLTC – adjusts the level of damping applied to the weight signal

Fast Track – see Fast – enables fast track of large weight changes

Display Freeze – see FREZ – holds a stable reading from unnecessary flicker

Motion Band – see MBND – affects the system conditions required for STABLE weight

Motion Delay – see MDly – delays action pending multiple stable integrations

Display Update – see UPDT – alters how often the display is refreshed

FILT & FLTC parameters found in the CONFIG Menu adjust the level of damping applied to the load cell signal.

Inevitably more damping makes for slower reaction time to change in weight.

Warning: This procedure requires qualified personnel only!

Front panel legend slot accessible?

Sign off on the legends replacement
