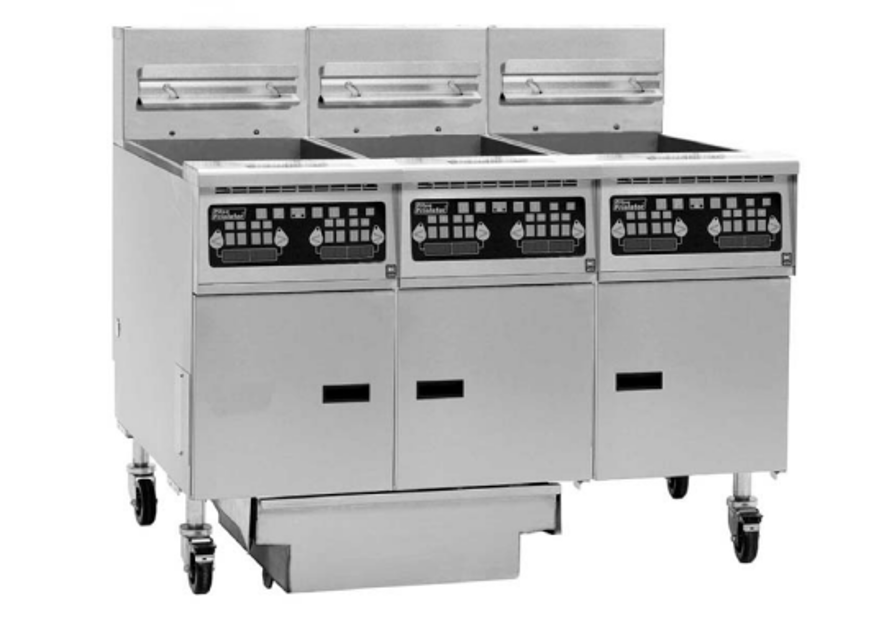

Pitco Full And Split Gas Fryer MG2T

Remove two #10-24 nuts securing top of computer to bezel studs

Loosen two #10-24 nuts securing bottom of computer to bezel studs

Check for any damage to the computer or bezel

Ensure all tools are accounted for

Is the pump removal necessary for split tank fryers?

Disconnect all electrical connections to pump box.

Remove screws securing pump box to cabinet bottom brace using a 5/16” hex bit.

Slide pump box back and out of cabinet.

Completely drain fry tank into a suitable container

Disconnect probe electrical plug, P7, from jack, J7, located above ignition module

Remove 2 screws securing probe bulb clamp inside tank using Phillips screwdriver. Remove bulb clamp

Straighten probe by bending it upwards

Loosen Ferrule Nut on probe fitting underneath tank, using 7/16” wrench

Unscrew fitting from bottom of tank using 9/16” wrench

Completely drain fry tank into a suitable container

Remove 2 screws securing high limit switch to burner bracket using 5/16” hex bit

Unplug high limit electrical plug, P5, from jack, J5, above ignition module

Removing the Capillary and Bulb

Unscrew capillary ferrule nut using 5/16” open-end wrench

Remove 2 screws securing bulb clamp to tank tapping pad using Phillips screwdriver
