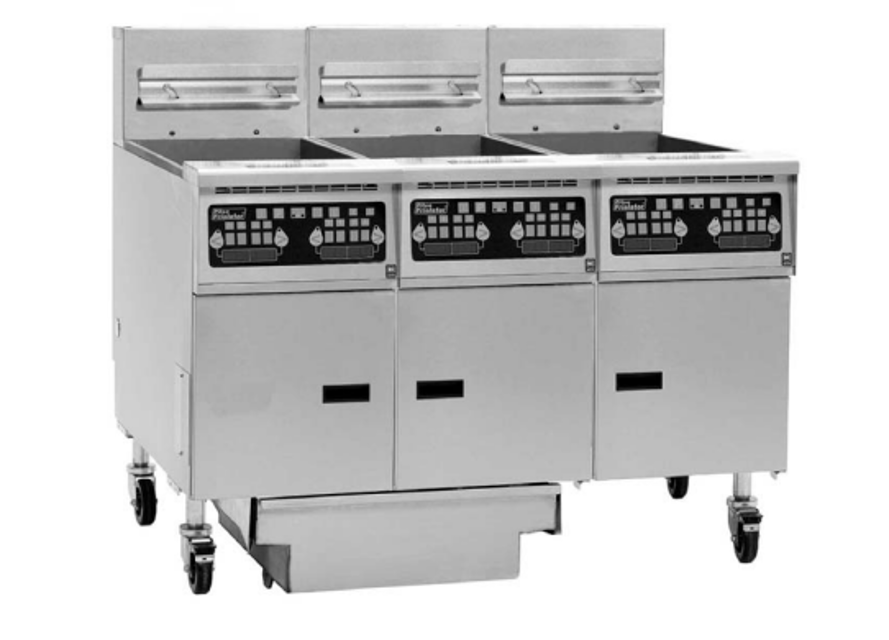

Pitco Full And Split Gas Fryer MG2

Loosen and disconnect top valve flare fitting from burner manifold

Pull gas valve assembly forward and down

Remove screw securing flame carryover brackets

Adjust burner bracket shield tabs if necessary

Remove two #10-24 nuts securing top of computer to bezel studs

Loosen two #10-24 nuts securing bottom of computer to bezel studs

Check for any remaining loose parts or debris in the bezel area

Ensure all removed nuts are accounted for

Describe any issues encountered during removal

Completely drain fry tank into a suitable container.

If changing a split tank, drain both halves of the tank.

Close Manual Gas Shut-off in gas supply piping to fry tank being serviced.

Remove filter drain line, if so equipped.

Remove drain valve handle(s) from drain valve(s), using 11/16” socket.

Unplug electrical plugs from jacks above ignition module.

Remove plug guard from cord box using a 5/16” Hex socket

Unplug cords from side of Cord Entrance Box

Remove nuts securing box to caster bolts using a 7/16” hex socket

Are all components removed and accounted for?

Describe any issues encountered during removal

Shut off appliance and disconnect all power connections prior to starting any service work

Disconnect appliance from gas supply or shut manual gas valve prior to servicing gas train

Disconnect 6 Pin Plug from Gas Valve

Loosen and remove pilot tubing from gas valve using 7/16” wrench

Loosen and remove gas supply tubing at bottom of valve using 1-1/16” open end wrench on supply tubing end connector and 15/16” open end wrench on brass male flare fitting at base of valve

Loosen top valve flare fitting from burner manifold using 1-1/16” open end wrench on female brass flare fitting at top of valve and 15/16” open end wrench on male brass flare fitting attached to burner manifold
