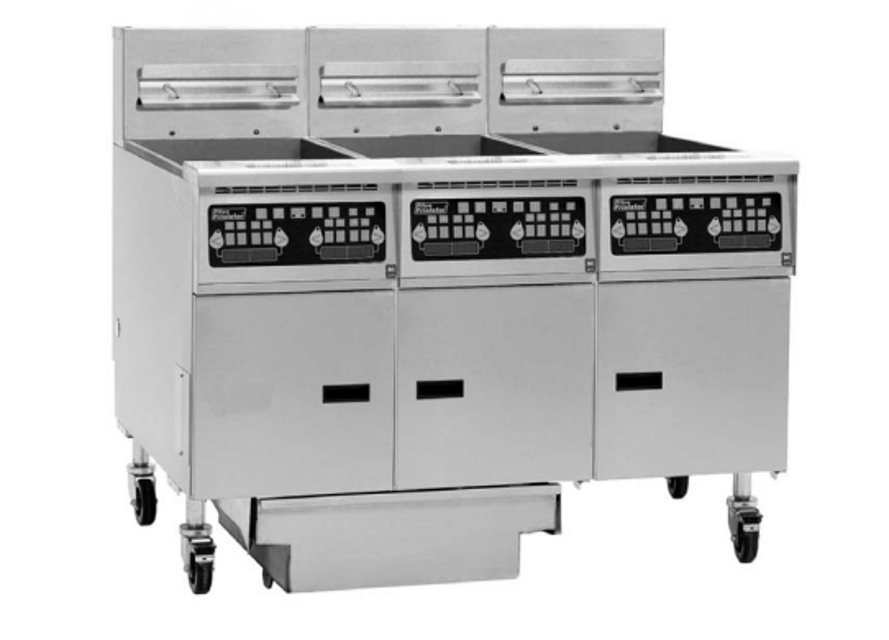

Pitco Full And Split Gas Fryer MG2S

Remove Transformer Box from Fryer

Remove screws securing transformer to box

Note the location of wires for reinstallation

Remove screw securing ground wire to pilot bracket using 5/16” socket.

Unplug high voltage spark cable from pilot assembly.

Remove 2 screws securing pilot assembly to burner bracket using 5/16” hex bit.

Loosen and remove pilot tubing from gas valve using 7/16” open-end wrench.

Ensure all components are removed and accounted for

Is the area clear of any tools or debris?

Remove transformer from Pump Box using Phillips screwdriver and needle nose pliers

Disconnect wires to pump transformer, noting location for reassembly

Check that all tools are available

Document the location of wires for reassembly

Verify all steps have been completed

Disconnect electrical harness from wire reduction board

Remove screws securing front panel bottom rail to cabinet using 5/16” hex bit

Remove screws securing front panel heat shield and strain relief retention clip to cabinet using 5/16” hex bit

Remove front panel heat shield from cabinet, lower end first, sliding harness strain relief out of notch in shield

Remove inner burner heat shields

Repeat steps 1-5 for each fryer in the system

Remove screws securing top deck to cabinet using 5/16” hex bit

Remove plug guard from cord box using a 5/16” Hex socket.

Unplug cords from side of Cord Entrance Box.

Remove nuts securing box to caster bolts using a 7/16” hex socket.

Are all components removed and accounted for?

Describe any issues encountered during removal.
