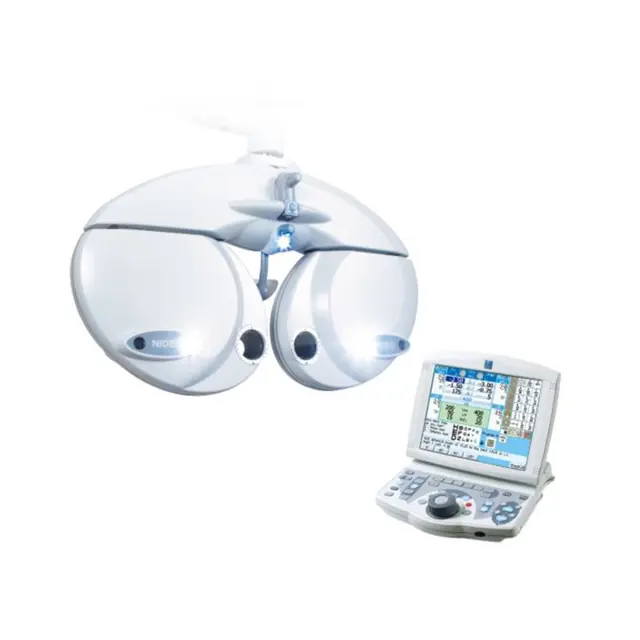

Nidec Nidec Refractor RT-5100 RT-5100

CAUTION! Be sure to turn the refractor off and disconnect the power cord from the outlet before replacing the fuses.

CAUTION! Only the specified fuses (T 2.5A 250 V or T 1.25 A 250 V) must be used.

RT-5100 does not normally turn on

If RT-5100 is connected to the system table, replace the fuses of the system table according to the system table operator’s manual.

Power cord removed from the electrical outlet of the relay box

NOTE! Dispose of the blown fuses according to local ordinances.

Warning: Be sure to secure the refractor head before removing or attaching the forehead rest.

Forehead rest wiped with a clean cloth?

Forehead rest washed with dilute neutral detergents?

Forehead rest wiped with a dry cloth?

Forehead rest attached in the original position?

WARNING! Be sure to secure the refractor head before removing or attaching the face shields.

Face shields removed from the refractor head

Face shields wiped with a clean cloth

Stubborn dirt cleaned with a dilute neutral detergent

NOTE! Do not wipe the inner surface of the face shields with neutral detergents.

Face shields attached in the original position

Sign off on the face shields cleaning

Warning: Do not touch the paper cutter of the printer cover.

Note: Do not pull the printer paper forcefully. Doing so could cause malfunction of the printer.

Press the paper cover open button to open the paper cover.

Set the printer paper as shown in the right figure. When the roll is set upside down, the data is not printed correctly.

Note: Be sure to take up slack in the printer paper.

Pass the paper through the paper outlet and close the paper cover.

Press the both top sides of the paper cover to close the cover.

Sign off on the printer paper replacement
