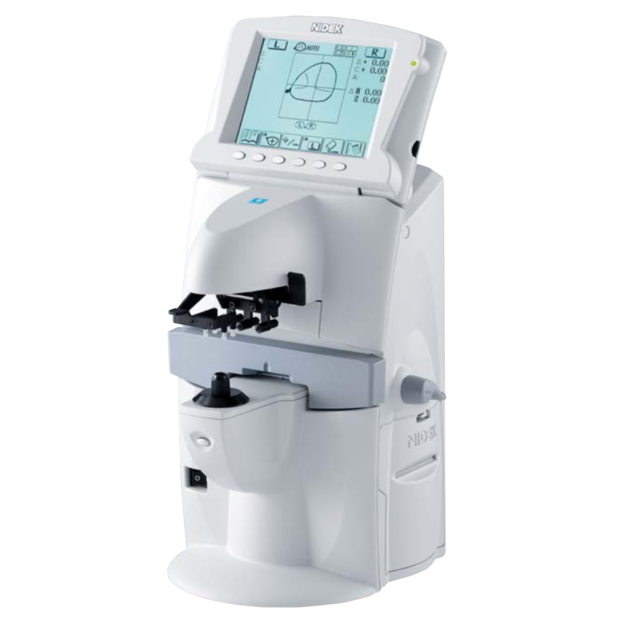

Nidec Auto Lensmeter LM-1000P

Warning: Ensure the device is turned off and disconnected from the power source before starting the procedure to avoid electric shock.

If the device does not turn ON, the fuses may be blown and need replacement.

Only use specified fuses (T 1 A 250 V or T 0.5 A 250 V). Using other fuses may cause fire.

If the fuse blows again, do not touch the internal structure. Contact your authorized distributor.

Power cord is removed from the electrical outlet

Power cord is unplugged from the inlet

Warning: This procedure requires careful handling of the lens to avoid damage.

Is the lens free of dust after using the blower?

Upload a photo of the lens after dust removal

Is the lens clean after wiping with alcohol-moistened material?

Upload a photo of the lens after wiping

Is the lens clean after checking with a penlight?

Upload a photo of the lens after checking with a penlight

Warning: Handle the ink cartridge with care to avoid spillage.

If the ink cartridge is not empty, do not proceed with the refill.

Did you remove the C-ring with tweezers?

Did you remove the screw from the detached ink cartridge with a Phillips screwdriver?

Note: Be careful not to damage the screw head.

Did you attach the removed screw to a new ink cartridge?

Did you leave a space of 0.5 mm between the screw head and the cartridge for the C-ring?

Did you insert the spring and the new cartridge into the marker holder?

Warning: Do not run the printer while the printer paper is not set. It may ruin the printer head.

Warning: Do not pull the paper in the printer forcefully. This may cause malfunction of the printer.

Pull the printer cover toward you. Open the cover while pushing down the hook on the top.

Lift the head up lever on the left.

Turn the knob counterclockwise when seen from the right to feed the printer paper.

Take out the used printer paper and remove the roll shaft.

Insert the roll shaft into new printer paper.

Set the printer paper into the printer housing. Ensure the paper is not upside down.

Lower the head up lever on the left as it was.

Warning: Dust detection. Please clean lens.

CAUTION! Clean the protective glass under the nosepiece every once in a while with a blower.

Clean the protective glass. Blow off any dust on the glass with a blower.

If it is still dirty, wipe gently with a lens cleaning paper.

NOTE! Take special care not to scratch the protective glass.

Sign off on the protective glass cleaning
