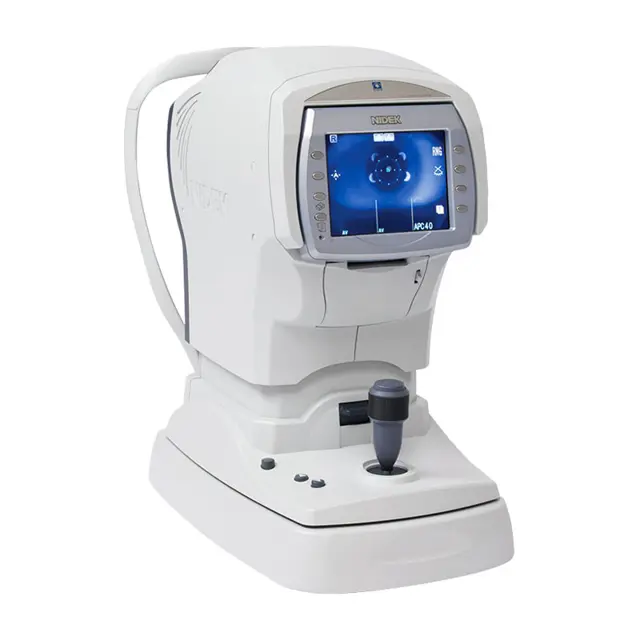

Nidec Non Contact Tonometer NT-510

Warning: Use soft cloth for cleaning. Never use an organic solvent such as paint thinner.

Warning: Do not press the LCD display using an object with a hard tip. Keep magnetic objects away from the LCD display.

Is the LCD display clean and undamaged?

Warning: Never use a sponge or cloth soaked in water. The water may leak into the inside of the device and cause device failure.

Is the device dry and free of water leaks?

Warning: Pay attention not to let dust or foreign particles into the air nozzle during cleaning.

Is the glass part of the air nozzle clean and free of dust or foreign particles?

Warning: Gently wipe the air nozzle without rubbing or without wiping it with foreign particles settled. The glass part may be scratched.

Disconnect the two fixing pins from the chinrest

Enter the number of chinrest papers removed from the pack

Ensure the stack of chinrest paper is 6mm or less in thickness

Pass the fixing pins through both holes of the stack of paper

Fix the stack of chinrest paper onto the chinrest

Insert the pins into the holes in the chinrest while holding both fixing pins and stack of paper

Push the pins into the holes of the chinrest

Sign off on the chinrest paper maintenance

Warning: Do not run the printer when printer paper is not loaded. It may ruin the printer head.

Warning: Do not pull the paper in the printer forcefully. This may cause malfunction of the printer.

Red line appears on the side of the printer paper?

If red line appears, stop using the printer and replace the roll with a new one.

Press the cover open button to open the printer cover.

CAUTION: Do not touch the printer head at the top of the opened printer cover. The printer head is hot right after printing and you may get burned.

Insert new printer paper. Load printer paper as shown in the picture on the right. Set printer paper so that its end is exposed from the cover.

Note: If the roll is loaded in such a way that paper becomes upside down, it is not possible to print data out. Be sure that printer paper is not loaded in a tilted position, the core of the roll is properly placed, or there is no slack in the roll. Printer paper may not be fed properly.

Warning: This procedure requires careful handling of the printer parts.

Printer cover opened and paper roll removed

Auto cutter cleaned with a vacuum cleaner

Warning: Never blow off powdery paper with a blower.

Printer paper supplied as it was

Cleaning forehead rest and chinrest during measurement

Forehead rest and chin rest wiped with a clean cloth dampened with rubbing alcohol

CAUTION: For tough stains, do not repeatedly wipe with a dry cloth.

Clean cloth dampened with rubbing alcohol used for tough stains
