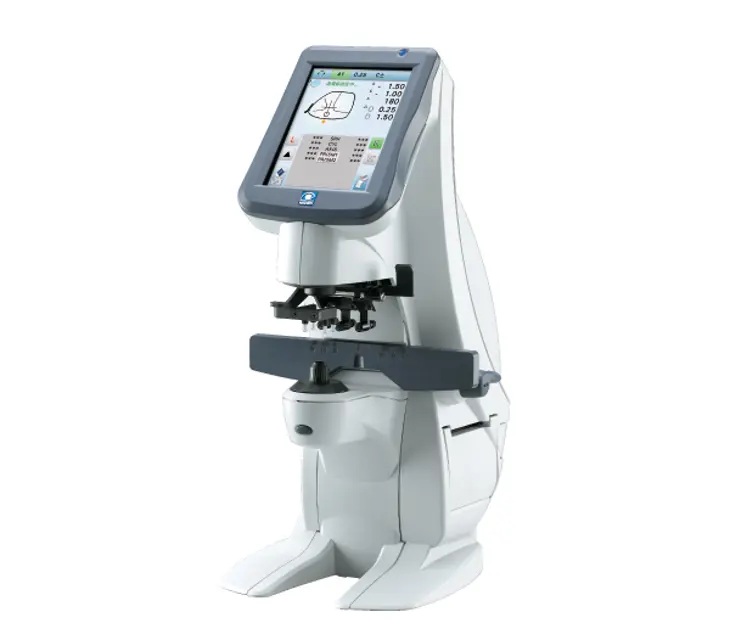

Nidec Auto Lensmeter LM-7P

Nidec Auto Lensmeter LM-7P

Create an account to install this asset package.

Maintenance Plans for Nidec Auto Lensmeter Model LM-7P

Integrate maintenance plans directly into your work orders in MaintainX.

Printer Paper Replacement

Check mark

Warning: Do not run the printer while the printer paper is not loaded.

Check mark

Warning: Do not pull the paper from the printer forcefully.

Check mark

Warning: Confirm that the printer paper is not reversed or tilted.

Check mark

Warning: Confirm that the cover is securely closed.

Check mark

Is the red line visible on the edge of the printer paper?

Check mark

CAUTION! When replacing the printer paper, be careful not to touch the printer head at the top inside the printer cover.

Check mark

Did you push the button on the rear of the device to open the printer cover and remove the printer paper?

Check mark

Did you load the new printer paper?

Check mark

Did you close the printer cover securely?

Run this procedureArrow right

Auto Lensmeter Exterior Cleaning

Check mark

CAUTION! Never use an organic solvent such as paint thinner. This could damage the surface of the device.

Check mark

CAUTION! Lightly wipe the touch screen with a soft cloth. The surface of the LCD may be damaged. Device malfunction may also result.

Check mark

CAUTION! Never use a sponge or cloth soaked in water. Water may leak into the interior of the device resulting in malfunction.

Check mark

Is the cover or panel of the device soiled?

Check mark

Upload a photo of the soiled area

Check mark

Describe the stain on the device

Check mark

Was the stain removed after cleaning with a soft cloth?

Check mark

Was the stain removed after cleaning with a cloth soaked in a neutral detergent and wrung well?

Check mark

Was the device wiped with a dry and soft cloth after cleaning?

Run this procedureArrow right

Ink Refilling

Check mark

Ink Cartridge Refilling

Check mark

Are the markings faint?

Check mark

If markings are faint, proceed with the following steps

Check mark

Upload a photo of the removed C-ring, spring and cartridge

Check mark

Is the new cartridge inserted and C-ring set in the groove?

Check mark

Ink Pad Refilling (optional)

Check mark

Are the markings faint?

Check mark

If markings are faint, proceed with the following steps

Check mark

Upload a photo of the removed ink pad

Run this procedureArrow right

Eye Care Card Slot Cleaning

Check mark

Warning: Turn off the device before cleaning with a contact cleaner.

Check mark

Is the Eye Care card slot soiled?

Check mark

If the slot is soiled, proceed with the following steps.

Check mark

Upload a photo of the soiled Eye Care card slot before cleaning.

Check mark

Did you use a commercially available contact cleaner or the optional one?

Check mark

Did you wipe the contacts of the Eye Care card with a soft cloth?

Check mark

For persistent stains, did you wipe them away with a cloth soaked in a neutral detergent and wrung well?

Check mark

Did you finally wipe them with a dry and soft cloth?

Check mark

Upload a photo of the Eye Care card slot after cleaning.

Run this procedureArrow right

Lens Table Adjustment

Check mark

Warning: This adjustment requires trained personnel with PPE!

Check mark

Does the lens table lever feel too heavy or too light during use?

Check mark

If the lever feels too heavy or too light, proceed with the following steps

Check mark

Lens table lever removed

Check mark

Setscrew on the adjustable screw loosened

Check mark

Adjustable screw rotated to adjust the feel of the lens table lever movement

Check mark

Note: The rotation range of the adjustable screw is up to one rotation in either clockwise or counterclockwise direction from the factory setting.

Check mark

Setscrew on the adjustable screw tightened

Check mark

Lens table lever attached and lever movement checked

Run this procedureArrow right

Parts for Nidec Auto Lensmeter LM-7P

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Printer Paper

8062000001

Ink Cartridge

31001-3371

Ink Cartridge

31001-3372

Supplement Ink

31001-M231

Supplement Ink

31001-M232

Printer Paper

8062000001

Ink Cartridge

31001-3371

Ink Cartridge

31001-3372

Supplement Ink

31001-M231

Supplement Ink

31001-M232

Printer Paper

8062000001

Ink Cartridge

31001-3371

Ink Cartridge

31001-3372

Supplement Ink

31001-M231

Supplement Ink

31001-M232
