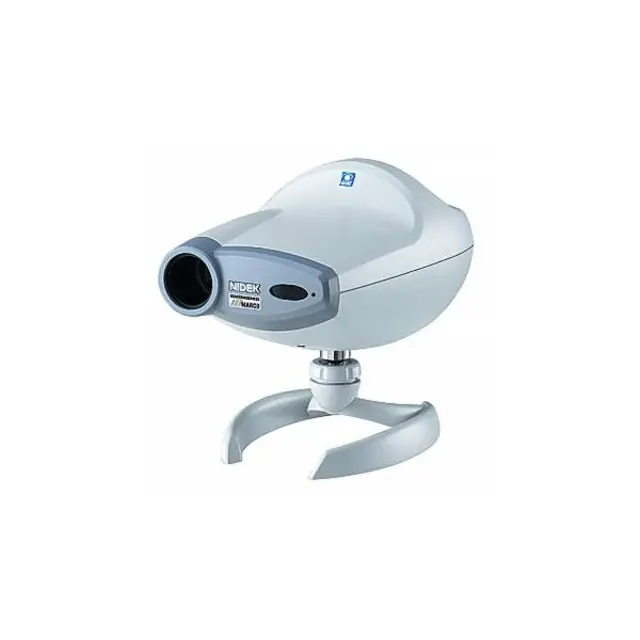

Nidec Chart Projector CP-770

Create an account to install this asset package.

Maintenance Plans for Nidec Chart Projector Model CP-770

Integrate maintenance plans directly into your work orders in MaintainX.

Chart Projector Cleaning

CAUTION! Never use organic solvents such as a paint thinner to clean the cover, etc. This could damage the surface.

Blow away dust on the projection lens with a blower.

If it is not clean enough, wipe with a sheet of lens cleaning paper.

Wipe cover and screen with a dry and soft cloth.

For severe dirt, immerse a cloth in a neutral detergent, wring it well, and wipe.

Wipe off with a dry cloth to finish.

Sign off on the projector cleaning

Run this procedure

Remote Control Battery Replacement

CAUTION! Do not use the remote control with a mixture of new and used batteries. Leakage of battery acid may cause a remote control failure or damage the periphery.

Detach the battery case cover from the rear side of the remote control.

Remove the old batteries.

Put in the new batteries.

Attach the battery case cover.

NOTE! Removing the batteries from the remote control does not clear the program contents.

When disposing of the dead batteries, follow the local governing ordinances and recycling plans.

Sign off on the battery replacement

Run this procedure

Turning ON/OFF VA Values

CAUTION! Be careful not to touch the internal parts of the device other than those indicated in the procedure. It may cause electric shock or failure.

Power switch is turned OFF

Upload a photo of the cap and the upper cover release screw

Upper cover removed successfully

Power switch turned ON

Upload a photo of the screw right above the light source

Black plate slid to turn ON or OFF the VA values

VA charts switched, single letter isolated, and line isolated

No obstruction or light leakage observed
