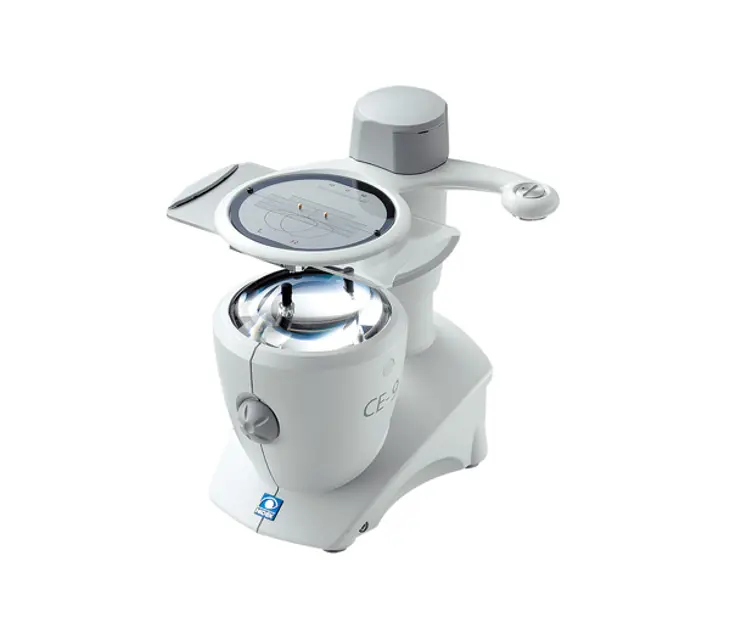

Nidec Centering Device CE-1
Need answers fast?
Explore the manual using AI.
The Nidec Centering Device CE-1 is a precision industrial asset designed for optimal alignment and centering in various applications. Known for its reliability and efficiency, this device is essential for maintaining operational excellence in manufacturing processes. Regular maintenance ensures longevity and peak performance.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Nidec Centering Device CE-1
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Nidec Centering Device CE-1
Create an account to install this asset package.
Maintenance Plans for Nidec Centering Device Model CE-1
Integrate maintenance plans directly into your work orders in MaintainX.
Lamp Replacement
Warning: This procedure is only for the 100 V system. The CE-1 for the 200 V system uses the LED as illumination. Therefore, lamp replacement is not necessary.
Power switch is turned off and power cord is disconnected from the wall outlet
Main body is laid down gently
Two screws that hold the lamp holder are removed with a Phillips screwdriver
Old lamp is removed by turning it clockwise while slightly pressing
New lamp is fitted into the lamp socket and secured by pressing it down so that it does not loosen
Warning: Do not put fingerprints or stains on the surface of the lamp
Lamp holder is attached as it was with the two screws
Sign off on the lamp replacement
Fuse Replacement
CAUTION! Turn the power off and unplug the power cord from the wall outlet prior to fuse replacement. Electric shock may result.
Power switch turned off and power cord disconnected from the wall outlet
Main body laid down gently
Fuse holder removed by turning it counterclockwise with a coin
Fuse rating
Fuse replaced with a new one
Fuse holder attached as it was
Sign off on the fuse replacement
Parts for Nidec Centering Device CE-1
Access the parts list for your equipment in MaintainX.
Lamp
42101-E013
Fuse
80402-02153
Fuse
80402-02156
Lamp
42101-E013
Fuse
80402-02153
Fuse
80402-02156
Lamp
42101-E013
Fuse
80402-02153
Fuse
80402-02156
