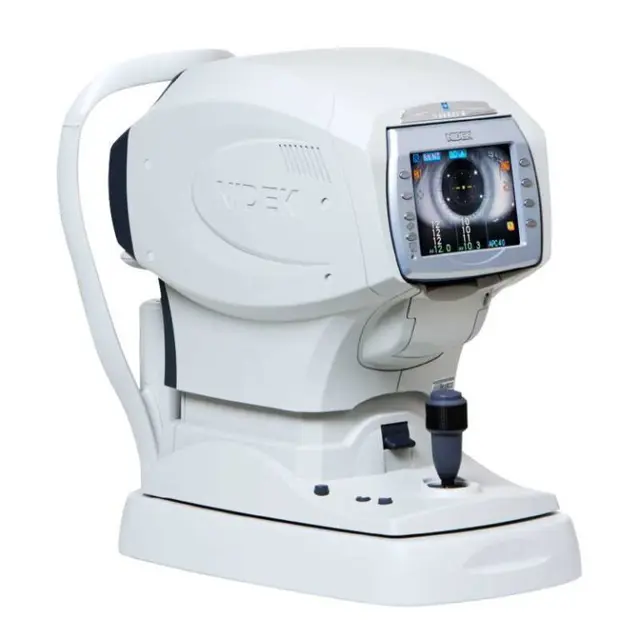

Nidec Auto Ref/Kerato/Tonometer Tonoref II

Create an account to install this asset package.

Maintenance Plans for Nidec Auto Ref/Kerato/Tonometer Model Tonoref II

Integrate maintenance plans directly into your work orders in MaintainX.

Auto Ref/Kerato/Tonometer Cleaning

CAUTION: Never use an organic solvent such as paint thinner or alcohol.

CAUTION: Lightly wipe the exterior of the LCD. Do not press the LCD using an object with a hard tip and keep magnetic objects away from the LCD.

CAUTION: Never use a sponge or cloth soaked in water. The water may leak into the inside of the device and cause device failure.

Cover or panel of the device clean?

LCD clean and undamaged?

Sign off on the cleaning procedure

Run this procedure

AR/KM Measurement Accuracy Check

Warning: This procedure requires trained personnel!

Removed the two fixing pins and chinrest paper?

Removed the cap from the spherical model eye?

Placed the model eye on the chinrest with its lens toward the measuring window?

Inserted the fixing pins?

Is the lens surface of the model eye clean?

Aligned the level of the spherical model eye for R/K measurement with the eye level marker?

Set the 1. STEP parameter to 0.01 D?

Performed AR and KM measurements in the same manner as normal AR and KM measurements?

Run this procedure

Printer Cleaning

Warning: Do not use a blower to remove powdery paper. It may cause malfunction.

Open the printer cover and remove the printer paper roll.

Apply the nozzle of a vacuum cleaner to the auto cutter to remove powdery paper.

Supply the printer paper as it was.

Sign off on the printer cleaning

Run this procedure

Air Nozzle Cleaning

NOTE! Pay attention not to let dust or foreign particles into the air nozzle during cleaning.

Display the NT measuring screen

Check the glass part of the air nozzle from an oblique direction for dust, soiling, etc.

Blow the dust, foreign particles etc. off with a blower if they are settled.

Gently wipe the glass part with a cotton swab dampened with alcohol.

CAUTION! Gently wipe the air nozzle without rubbing or without wiping it with foreign particles setled. The glass part may be scratched.

Check the glass part for soiling again.

Sign off on the air nozzle cleaning

Run this procedure

Measuring Window Cleaning

Warning: Use a thin stick which does not damage glass lenses.

Display the R/K measurement screen.

Dust blown off the measuring window with a blower

Wrap lens cleaning paper around a thin stick such as a chopstick (or cotton swab) and wipe the lens of the measuring window with a material moistened with alcohol.

Measuring window lens cleaned with alcohol

Wipe off the glass of the mire ring around the measuring window using a gauze or such dampened with alcohol.

Mire ring around the measuring window cleaned with alcohol

Check if the window is cleaned using a penlight. If not, clean it again with new cleaning paper.

Window checked for cleanliness with a penlight

Run this procedure
