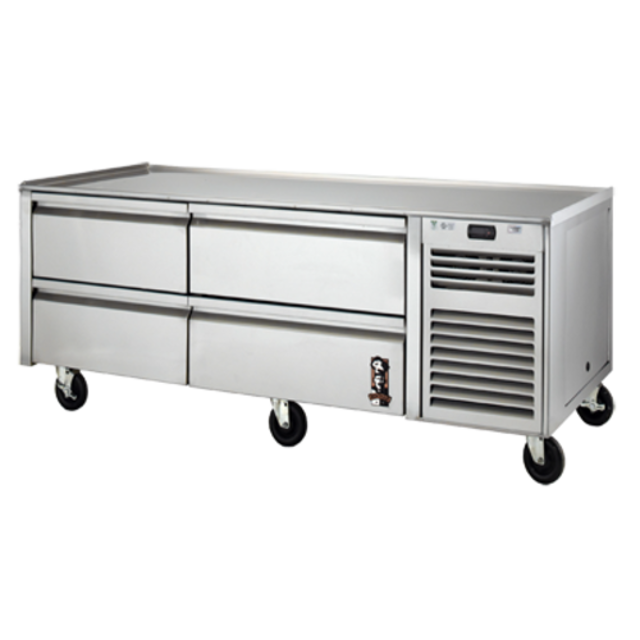

Montague Refrigerated Chef Base Unit RB-84-R

Sponge with cloth, then rinse with clear water and wipe dry

Rub with cloth as directed on the package

Tenacious Deposits, Rusty Discolorations, Industrial Atmospheric Stains

Swab and soak with clean cloth, let stand 15 minutes or more according to directions on package, then rinse dry

WARNING: DISCONNECT ELECTRICAL POWER SUPPLY BEFORE CLEANING ANY PART OF THE UNIT

Disconnect electrical power supply

Remove louvered panel by lifting it up and pulling the bottom out

Carefully clean dirt and lint from the condenser coil using a vacuum cleaner or soft brush

Was an approved condenser degreaser used to remove grease?

Replace louvered panel by installing top of the panel into track and pushing in the bottom so it fits inside the opening

Pull drawer open until it stops

Pull back on slide locks on left and right side retractable slides

Lift drawer slightly while pulling back until drawer assembly is removed

Remove gasket by pulling (by hand) from retaining strip

Install new gasket by securely snapping lip of gasket into retaining strip of door on all sides

Press gasket into retaining strip

Verify proper installation before re-installing drawer

Disconnect electrical power supply before cleaning any parts of the unit

Remove the drawer from the drawer frame modules

Use warm soapy water to clean storage cabinet doors

Rinse thoroughly and dry with a clean soft cloth

Ensure no cleaners containing gritty, abrasive materials, bleach or harsh chemicals are used

Always rub in the same direction as the grain pattern of the stainless steel

Ensure the service is performed by an authorized & trained service technician

Remove screws mounting the condensing guard to the condenser cabinet

Remove 3 screws from the condensing unit base (2 in front, 1 at right rear)

Retract the condensing unit from the condenser cabinet on a sliding shelf

Remove the additional right side panel if accessible

Use vacuum and soft brush to dislodge and remove dust on and in the coil
