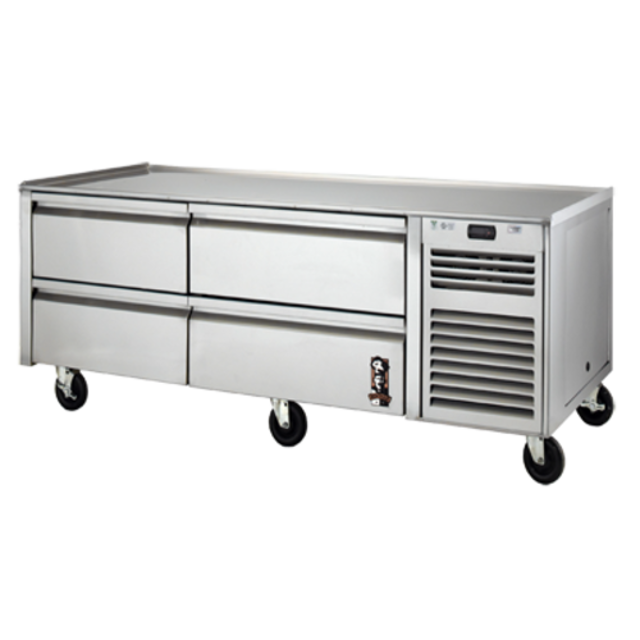

Montague Refrigerated Chef Base Unit RB-96-R

Pull drawer open until it stops

Pull back on slide locks on left and right side retractable slides

Lift drawer slightly while pulling back until drawer assembly is removed

Was the drawer assembly removed successfully?

Remove gasket by pulling from retaining strip

Install new gasket by snapping lip of gasket into retaining strip of door on all sides

Press gasket into retaining strip

WARNING: DISCONNECT ELECTRICAL POWER SUPPLY BEFORE CLEANING ANY PART OF THE UNIT

Disconnect electrical power supply

Remove louvered panel by lifting it up and pulling the bottom out

Clean dirt and lint from the condenser coil using a vacuum cleaner or soft brush

Was an approved condenser degreaser used to remove grease?

Reassembly and Power Restoration

Replace louvered panel by installing top of the panel into track and pushing in the bottom so it fits inside the opening

Select cleaning agents for routine cleaning

Sponge with cloth, then rinse with clear water and wipe dry

Select cleaning agents for smears and fingerprints

Rub with cloth as directed on the package

Tenacious Deposits, Rusty Discolorations, Industrial Atmospheric Stains

Select cleaning agents for tenacious deposits and stains

Swab and soak with clean cloth, let stand 15 minutes or more according to directions on package, then rinse dry

Remove all product and pans from the base cabinet

Leave the unit to set for 24 hours with all of the drawers removed

Perform the monthly case cleaning

Ensure the area is safe and clear for maintenance

Verify that the technician is authorized and trained

Remove screws mounting the condensing guard to the condenser cabinet

Remove 3 screws from the condensing unit base (2 in front, 1 at right rear)

Retract the condensing unit from the condenser cabinet on a sliding shelf

Remove the right side panel if accessible
