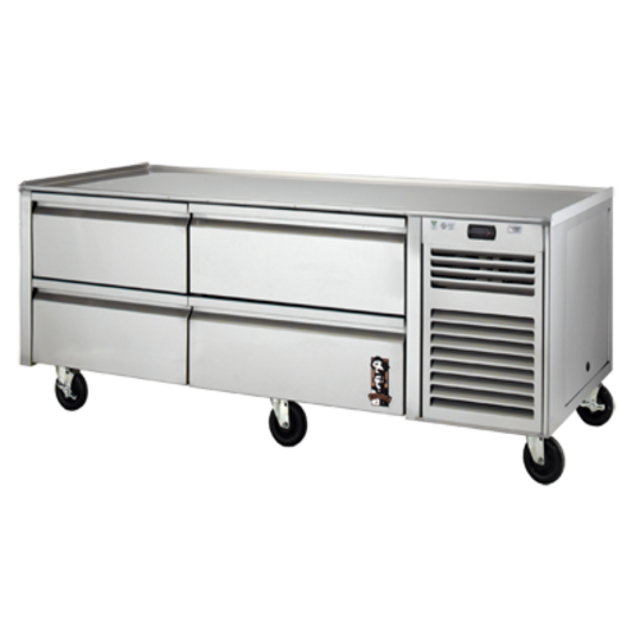

Montague Refrigerated Chef Base Unit RB-48-R

Select cleaning agent for routine cleaning

Sponge with cloth, then rinse with clear water and wipe dry

Select cleaning agent for smears and fingerprints

Rub with cloth as directed on the package

Tenacious Deposits, Rusty Discolorations, Industrial Atmospheric Stains

Select cleaning agent for tenacious deposits and stains

Swab and soak with clean cloth, let stand 15 minutes or more according to directions on package, then rinse dry

Check for the following issues with the gasket

Is the gasket creating a flush seal when the drawers are closed?

Pull drawer open until it stops

Pull back on slide locks on left and right side retractable slides

Lift drawer slightly while pulling back until drawer assembly is removed

Remove gasket by pulling (by hand) from retaining strip

Install new gasket by securely snapping lip of gasket into retaining strip of door on all sides

Remove the louvered panel from the front of the unit

Lift access panel up and pull outward to remove

Remove the magnetic condenser filter by pulling the filter framing away from the condenser

Clean the condenser filter thoroughly

Do you have an extra condenser filter on hand?

Ensure the area is safe and clear for maintenance

Verify that the service technician is authorized and trained

Remove screws mounting the condensing guard to the condenser cabinet

Remove 3 screws from the condensing unit base (2 in front, 1 at right rear)

Retract the condensing unit from the condenser cabinet on a sliding shelf

Remove the right side panel if accessible

Disconnect electrical power supply before cleaning any parts of the unit

Remove the drawer from the drawer frame modules

Use warm soapy water to clean storage cabinet doors

Ensure cleaning materials do not contain

Rub in the same direction as the grain pattern of the stainless steel
