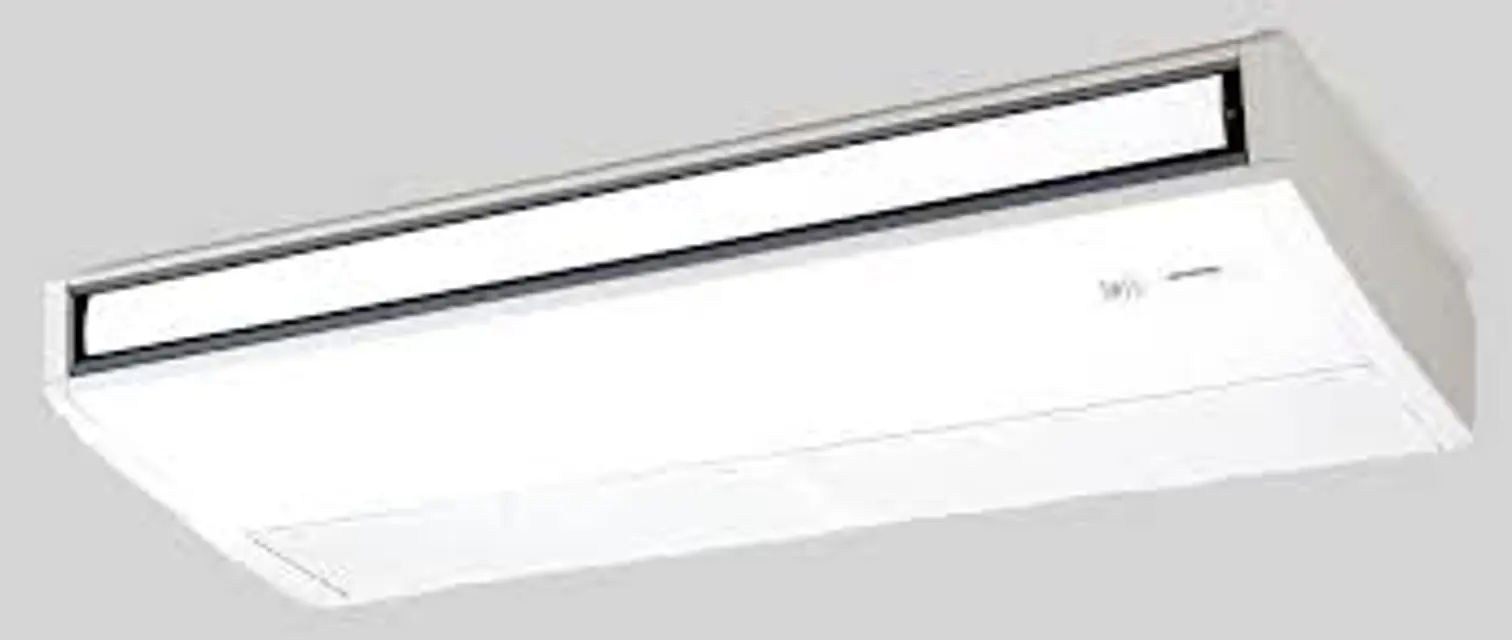

Mitsubishi Split-Type, Heat Pump Air Conditioner PCFY-P24NKMU-E
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type, Heat Pump Air Conditioner Model PCFY-P24NKMU-E
Integrate maintenance plans directly into your work orders in MaintainX.
Auto Vane Disassembling
Remove the intake grille
Upload a photo of the removed intake grille
Remove the right side panel
Upload a photo of the removed right side panel
Remove the vane motor and cover
Upload a photo of the removed vane motor and cover
Slide the auto vane to the vane motor side
Upload a photo of the slid auto vane
Remove 2 axes from each vane support pushing the vane support to the vane sleeve side
Fan Disassembling
(1) Remove the air intake grille. (See Figure 1,2)
(2) Remove the screw from the beam and remove the beam. (See Photo 1)
(3) Remove 2 screws from the electrical cover, and remove the electrical cover.
(4) Remove 2 screws from the electrical box and pull the electrical box downward.
Temporarily secure the electrical box using 2 hooks in the back of electrical box.
(5) Remove 2 screws from the left side beam and remove the beam. (See Photo 9)
(6) Loosen 2 set screws (2 hexagon set screws) of connecting joint. (See Photo 5)
(7) Remove 3 lower casings while pressing each 4 catches of the casing. (See Photo 6)
(8) Remove the 4 screws from the bearing support. (See Photo 10)
Vane Motor Disassembling
Remove the air intake
Upload a photo of the air intake removal
Remove the right side panel
Upload a photo of the right side panel removal
Remove the connector of vane motor
Upload a photo of the connector removal
Remove 2 screws of vane motor cover
Upload a photo of the vane motor cover removal
Remove vane motor
TH22 and TH23 Disassembling
Remove the air intake grille
Upload a photo of the removed air intake grille
Remove the left and right side panels
Upload a photo of the removed side panels
Remove the under panel
Upload a photo of the removed under panel
Remove the drain pan
Upload a photo of the removed drain pan
Disconnect the connector CN44 (white) from the indoor controller board
Indoor Controller Board and Electrical Parts Box Disassembling
(1) Remove the air intake grille. (See Figure 1,2)
(2) Remove the screw from the beam and remove the beam. (See Photo 1)
(3) Remove 2 screws from the electrical cover, and remove the electrical cover.
(4) Remove 2 screws from the electrical box and pull the electrical box downward.
Temporarily secure the electrical box using 2 hooks in the back of electrical box.
(5) Disconnect the connectors on the indoor controller board.
[Removing the electrical box]
(6) Disconnect the wires from the terminal blocks and pull out the electrical box. (See Photo 2)
[Removing the indoor controller board]
Parts for Mitsubishi Split-Type, Heat Pump Air Conditioner PCFY-P24NKMU-E
Access the parts list for your equipment in MaintainX.
Drain Pump Kit
PAC-SH84DM-E
High Efficiency Filter
PAC-SH89KF-E
External Heat Adapter
PAC-YU25HT
I-See Sensor
PAC-SH91MK-E
Wireless Remote Controller with I-See Sensor
PAR-SA92MW-E
Drain Pump Kit
PAC-SH84DM-E
High Efficiency Filter
PAC-SH89KF-E
External Heat Adapter
PAC-YU25HT
I-See Sensor
PAC-SH91MK-E
Wireless Remote Controller with I-See Sensor
PAR-SA92MW-E
Drain Pump Kit
PAC-SH84DM-E
High Efficiency Filter
PAC-SH89KF-E
External Heat Adapter
PAC-YU25HT
I-See Sensor
PAC-SH91MK-E
Wireless Remote Controller with I-See Sensor
PAR-SA92MW-E
