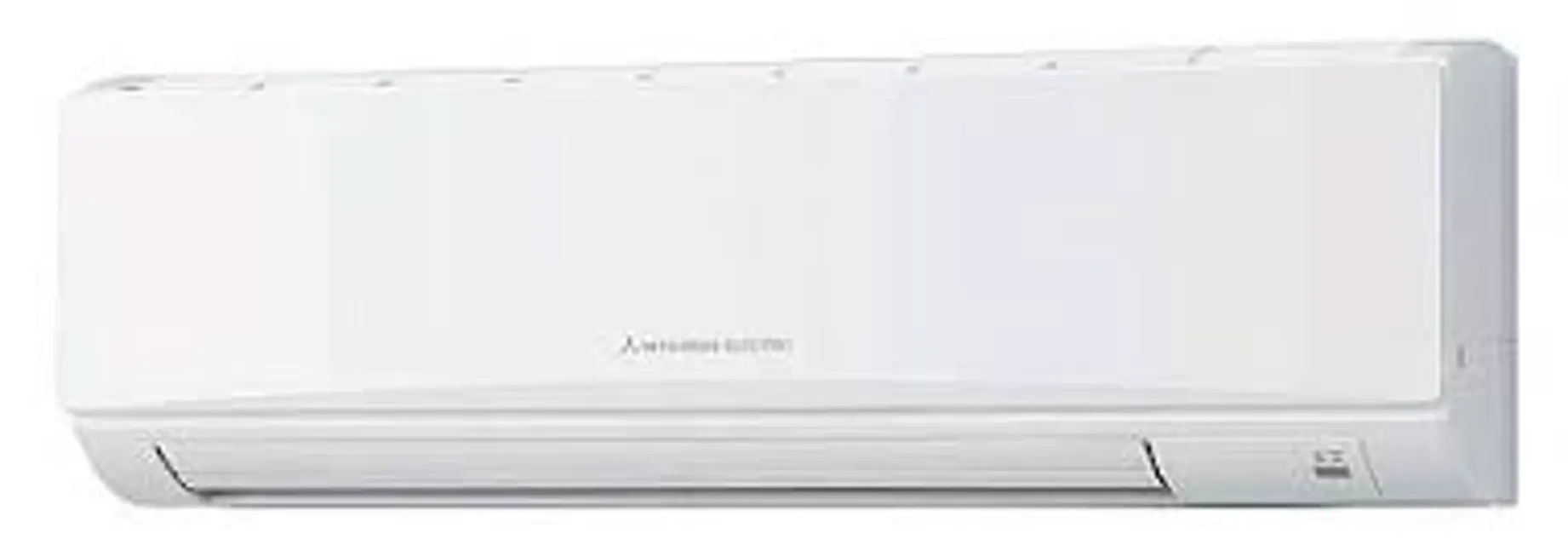

Mitsubishi Split-Type, Heat Pump Air Conditioner PKFY-P100VKM-E

Press and unlock the knobs on both sides of the front grille and lift the front grille until it is level. Pull the hinges forward to remove the front grille.

Upload a photo of the removed front grille

Remove 3 screw caps of the panel. Remove 5 screws.

Upload a photo of the panel after removing screws

Hold the lower part of both ends of the panel and pull it slightly toward you, and then remove the panel by pushing it upward.

Remove the screw of the corner box. Remove the corner box.

Upload a photo of the panel after removing the corner box

Sign off on the panel disassembling

Remove 2 screws of the vane motor unit cover, and pull out the vane motor unit

Remove 2 screws of the vane motor unit

Remove the vane motor from the vane motor unit

Disconnect the connector from the vane motor

Remove the panel and the corner box

Remove the electrical box covers

Upload a photo of the removed water cut

Remove the liquid pipe thermistor and gas pipe thermistors

Disconnect the connector (CN44) (CN2G) on the indoor controller board (TH22 and TH23/CN44, TH24/CN2G)

Sign off on the disassembling process

Remove the panel and corner box

Remove the electrical box covers

Remove the room temperature thermistor

Disconnect the connector (CN20) on the indoor controller board

Remove the panel and the corner box

Remove the screw and hook of address board case

Remove the front and side electrical box covers (each 1 screw)

Remove the transmission wiring of TB5, the power supply wiring of TB2 and the wiring of MA-remote controller (TB15)

Disconnect the connectors on the indoor controller board

Disconnect the connector for ground wire

Remove the screw on lower side of the electrical box

Push up the upper fixture catch to remove the box, then remove it from the box fixture
