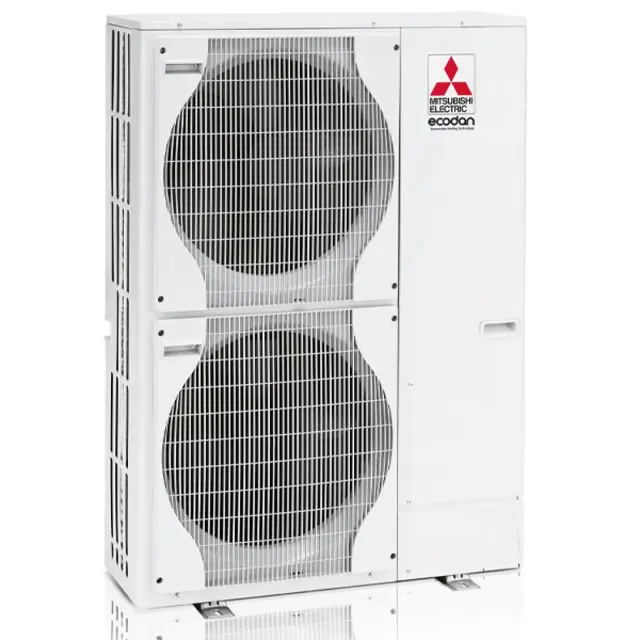

Mitsubishi Air Conditioner PUHZ-RP4VHA
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Air Conditioner Model PUHZ-RP4VHA
Integrate maintenance plans directly into your work orders in MaintainX.
Air Filter Cleaning
Care and cleaning
• Be sure to turn the ON/OFF switch to the OFF position before proceeding with care and handling of the unit.
Removing the air filter
Be sure to check on the location and the way of setting with the contractor when the unit performs a trial run.
A.Air intake
B. Filter
C.Screw (Only RP·EA)
Cleaning filters
• Air filter cleaning method varies according to filter material. Read instruction concerning filter material and cleaning method carefully. General method for cleaning filters is shown below.
Indoor Unit Cleaning
Is the ON/OFF switch in the OFF position?
Warning: Do not attempt to pull the vertical air vanes forcibly by hands to prevent possible damage or malfunction.
Wipe the unit with a dry, soft cloth.
Use a household detergent (for tableware cleaning or cloth washing) to remove fingerprint and oil stains.
Warning: Do not use gasoline, benzine, thinner, and polishing powder which could damage the unit.
Sign off on the indoor unit cleaning
