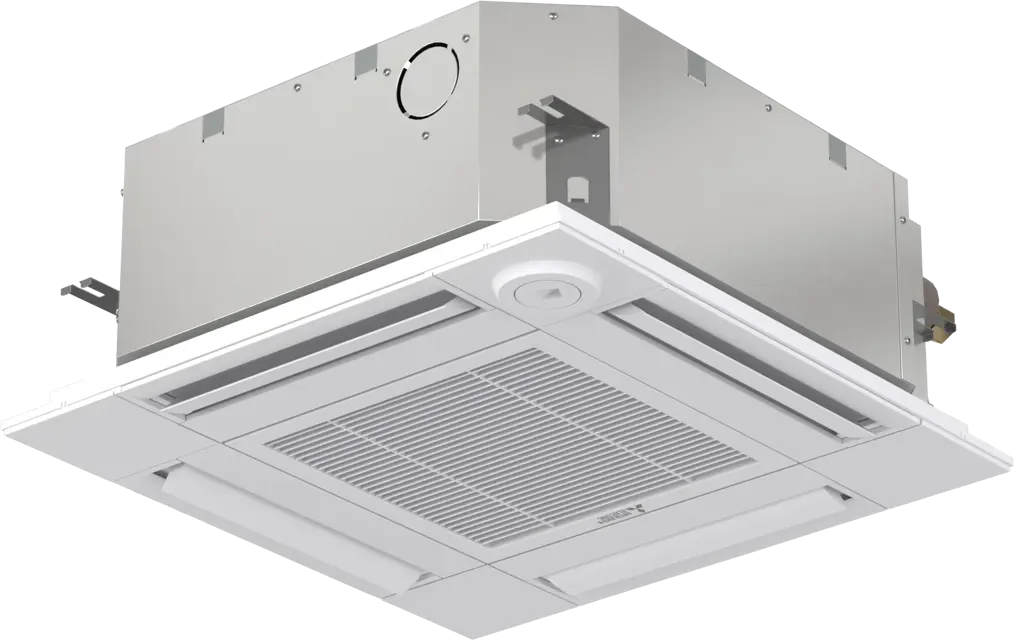

Mitsubishi Split-System Heat Pump SLZ-KF12NA

If two or more indoor units are connected, filter cleaning timing for each unit may be different, depending on the filter type.

The icon grid-like icon will appear when the filter on the main unit is due for cleaning.

When the filter sign is reset, the cumulative operation time of all units will be reset.

The grid-like icon is scheduled to appear after a certain duration of opera-tion, based on the premise that the indoor units are installed in a space with ordinary air quality. Depending on the air quality, the filter may require more frequent cleaning.

The cumulative time at which filter needs cleaning depends on the model.

• This indication is not available for wireless remote controller.

• Clean the filters using a vacuum cleaner. If you do not have a vacuum cleaner, tap the filters against a solid object to knock off dirt and dust.

• If the filters are especially dirty, wash them in lukewarm water. Take care to rinse off any detergent thoroughly and allow the filters to dry completely before putting them back into the unit.

Caution: In removing the filter, precautions must be taken to protect your eyes from dust. Also, if you have to climb up on a stool to do the job, be careful not to fall. When the filter is removed, do not touch the metallic parts inside the indoor unit, otherwise injury may result.

Slide the levers on the intake grille in the direction indicated by the arrow and it should open.

Release the knob on the center edge of the intake grille and pull the filter forward to remove the filter.
