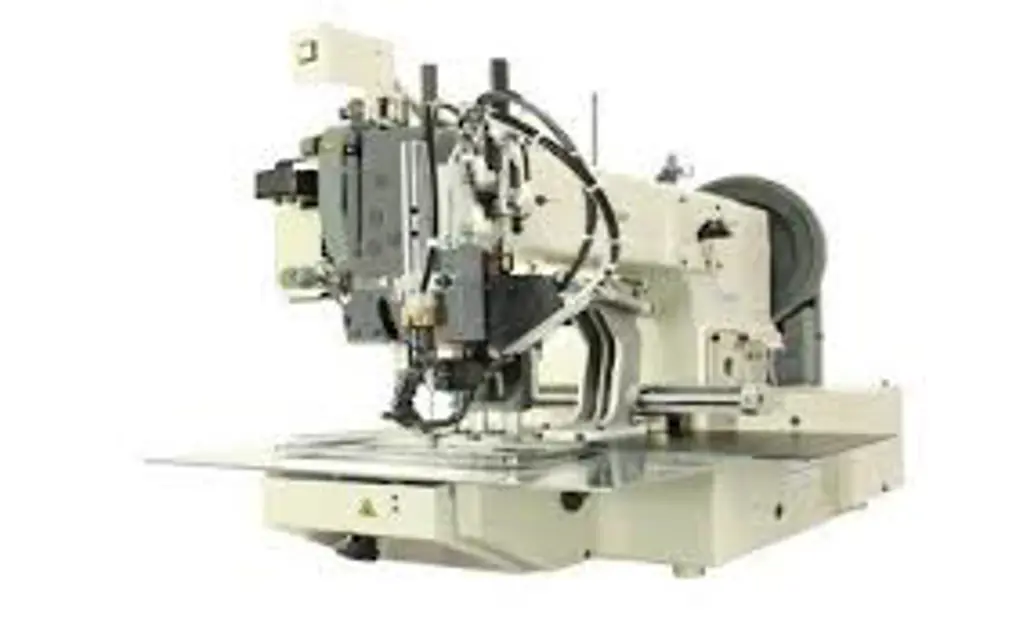

Mitsubishi Industrial Sewing Machine PLK-G2008H

CAUTION: Please make sure to turn the power switch off before cleaning the sewing machine.

CAUTION: Please pay attention to that staining your skin or eyes with oil may cause an inflammation.

Is the waste oil pan full filled in the oil bottle (No.1)?

If the waste oil pan is full filled in the oil bottle (No.1), remove the oil bottle then dispose of the waste oil.

Sign off on the oil waste disposal

CAUTION: Please make sure to turn the power switch off before adjusting the sewing machine.

CAUTION: When adjusting the sewing machine with the power switch on, please be careful not to step on the foot switch by mistake.

CAUTION: Please be careful not to be injured by a sharp part such as the needle and the shuttle hook point.

CAUTION: Please make sure to put the safety guards (eye guards, belt guards, link covers, or the others) back on the initial position after the sewing machine adjustment.

Turn the driver race (No.2) counterclockwise until it will go no further. Put shuttle (No.1) to come contact with the driver race (No.2) by (No.3) point.

Check a distance between the blade point (No.4) of the shuttle (No.1) and the end face of the shuttle race. Proper distance is 1mm. If distance is not proper, refer to following adjustment.

Turn the shuttle (No.1) until at the point described in (3).

Remove the V-belt from sewing machine.

CAUTION: Please make sure to turn the power switch off before cleaning the sewing machine.

CAUTION: Please pay attention to that staining your skin or eyes with oil may cause an inflammation.

Remove the dust and the thread waste sticking the threading parts or the hooks area regularly.

Clean the X-Y slide guide regularly and also pour some grease.

Sign off on the sewing machine maintenance

CAUTION: Please make sure to turn the power switch off before adjusting the sewing machine.

When adjusting the sewing machine with the power switch on, please be careful not to step on the foot switch by mistake.

Please be careful not to be injured by a sharp part such as the needle and the shuttle hook point.

Please make sure to put the safety guards (eye guards, belt guards, link covers, or the others) back on the initial position after the sewing machine adjustment.

Turn the hand wheel to make the needle bar ascend 5 mm from its lowest position. At this time, blade point (No.2) should be aligned with the center of the needle (No.1).

The distance from the upper surface of the throat plate to the lower end of the needle bar should be 26.5 mm.

Remove the cover of the arm top.

Loosen screw (No.6), and adjust so that marker dot (No.3) engraved on the eccentric cam of the vertical rod is aligned with marker line (No.4) engraved on the main shaft.

CAUTION: Please make sure to turn the power switch off before adjusting the sewing machine.

When adjusting the sewing machine with the power switch on, please be careful not to step on the foot switch by mistake.

Please be careful not to be injured by a sharp part such as the needle and the shuttle hook point.

Please make sure to put the safety guards (eye guards, belt guards, link covers, or the others) back on the initial position after the sewing machine adjustment.

Correct clearance between the needle (No.1) and the needle guard of the driver (No.2) has the range of 0 ~ 0.05 mm.

Turn the hand wheel to make the needle bar lowest position.

Remove the V-belt and tilting the sewing machine.

Loosen two screws (No.3) and Bolt (No.4).

Adjust clearance between the convex section of needle (No.1) and the needle guard of the driver, (No.2) to range of 0 ~ 0.05 mm by moving the shuttle driving shaft (No.5) to the left and right.
