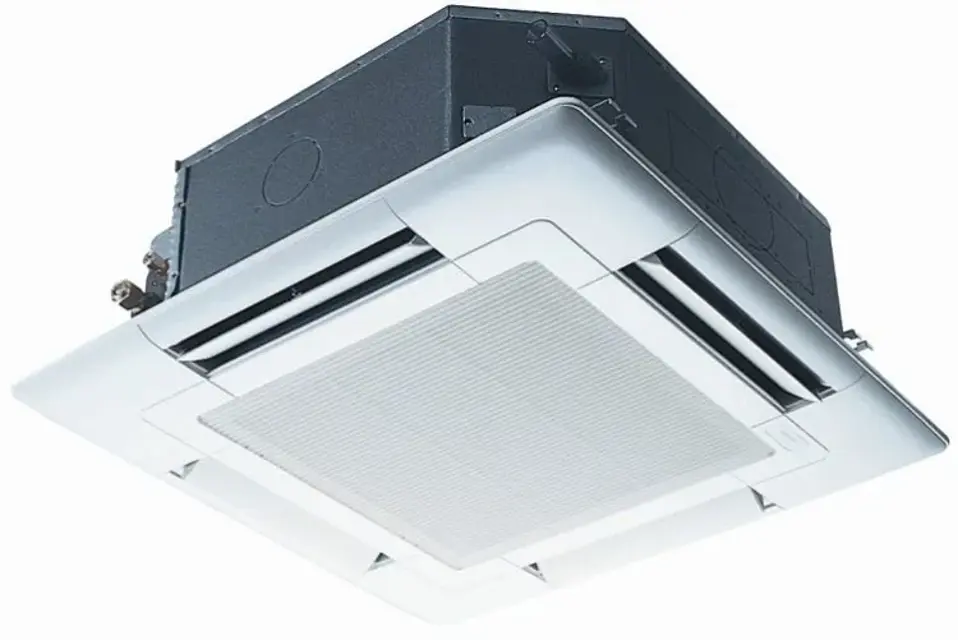

Mitsubishi Ceiling Cassette Indoor Unit SLZ-KA35VA

For wireless remote controller (Fig. 9-3)

Water is being properly drained out and no water is leaking from joints during the test run

Drainage checked during installation

Drainage checked before finishing ceiling installation in a new premises

Cover of the water supply inlet removed and about 1000 cc of water added using a water supply pump

Emergency operation switch (cooling) on the grille switched on

Water is being drained out through the drainage outlet

Cover replaced and power supply isolated after checking the drainage

Drain plug replaced after confirming the drainage system is functioning

After installation of indoor and outdoor units, and piping and electric wiring work, recheck that the unit is free from leaks of refrigerant, loosened connections, and incorrect polarity.

Measure an impedance between the power supply terminal block (L, N, ) on the units and the ground with a 500 V Megger and check that it is equal to or greater than 1.0 MΩ.

9.2.1. For wireless remote controller (Fig. 9-1)

Measure an impedance between the power supply terminal block on the outdoor unit and the ground with a 500 V Megger and check that it is equal to or greater than 1.0 MΩ.

• Before performing the test run, recheck for any wrong wiring. Wrong wiring prevents normal operation or results in blown fuse disabling operation.

• Perform test run in the following procedure.
