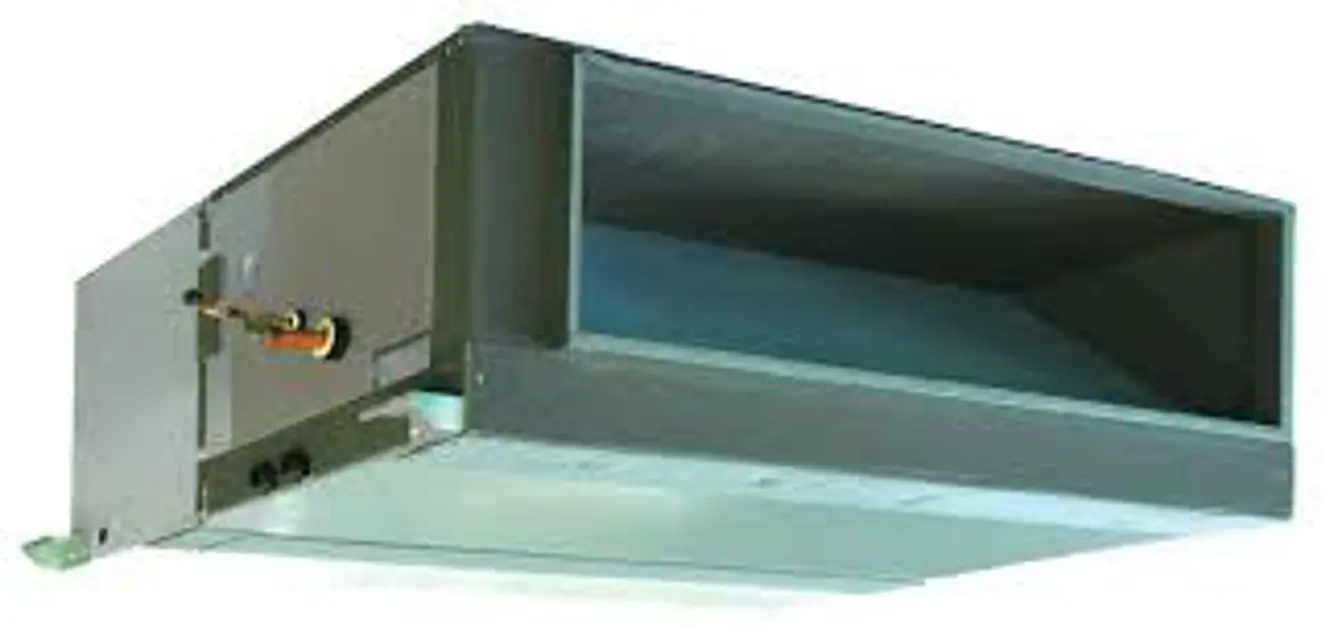

Mitsubishi Air Conditioner PEFY-P72NMHSU-E

Need answers fast?
Explore the manual using AI.

Mitsubishi Air Conditioner PEFY-P72NMHSU-E
Mitsubishi Air Conditioner PEFY-P72NMHSU-E

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Mitsubishi Air Conditioner PEFY-P72NMHSU-E

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Mitsubishi Air Conditioner PEFY-P72NMHSU-E

Mitsubishi Air Conditioner PEFY-P72NMHSU-E

Create an account to install this asset package.

Maintenance Plans for Mitsubishi Air Conditioner Model PEFY-P72NMHSU-E

Integrate maintenance plans directly into your work orders in MaintainX.

Intake Air Thermistor Disassembling

Check mark

Exercise caution when removing heavy parts.

Check mark

1. Remove the control box cover according to the procedure in section 1. Control box.

Check mark

2. Disconnect the connector (CN20) from the Indoor controller board.

Check mark

3. Pull out the thermistor holder (B) and thermistor (C) on the control box.;

Run this procedureArrow right

Control Box Disassembling

Check mark

Exercise caution when removing heavy parts.

Check mark

1. Removing the control box cover.

Check mark

(1) Remove the two fixing screws on the cover (A) to remove it.;

Run this procedureArrow right

Heat Exchanger Disassembling

Check mark

Exercise caution when removing heavy parts.

Check mark

1. Remove the control box cover according to the procedure in section 1. Control box.

Check mark

2. Remove the maintenance cover according to the procedure in section 3. Thermistor (Gas pipe) (Liquid pipe) · LEV.

Check mark

3. Remove the thermistor and disconnect LEV connector according to the procedure in section 3. Thermistor (Gas pipe) (Liquid pipe) · LEV.

Check mark

4. Remove the drainpan according to the procedure in section 4. Drainpan.

Check mark

5. Removing the Heat exchanger.

Check mark

(1) Remove the four fixing screws on the heat exchanger (N) to remove it.;

Run this procedureArrow right

Gas Pipe and Liquid Pipe Thermistors, LEV Disassembling

Check mark

Exercise caution when removing heavy parts.

Check mark

1. Remove the control box cover according to the procedure in section 1. Control box.

Check mark

2. Removing the maintenance cover (1) Remove the ten fixing screws on the cover (D) , cover (E) , and cover (F) to remove the maintenance cover.

Check mark

3. Removing the thermistor

Check mark

(1) Disconnect the connector (CN44) from the Indoor controller board.

Check mark

(2) Remove the thermistor (G) from the thermistor holder (H)on the copper tube.

Check mark

Thermistor size

Check mark

Liquid pipe: ø8mm

Check mark

Gas pipe: ø6mm

Run this procedureArrow right

Reactor, Fan and Fan Motor Disassembling

Check mark

Exercise caution when removing heavy parts.

Check mark

1. Remove the control box cover according to the procedure in section 1. Control box.

Check mark

2. Removing the fan motor and ACL cable.

Check mark

(1) Disconnect the connector (CNCT1) from the INV board and connector (CNACL) from the noise filter board. Then, disconnect the relay connector.

Check mark

(2) Remove the ground wire on the motor from the white connector.

Check mark

(3) Remove the cable through the rubber bush.

Check mark

3. Removing the bottom plate.

Check mark

(1) Remove the ten fixing screws on the bottom plate (T) to remove it.

Check mark

4. Removing the wiring.

Run this procedureArrow right

Parts for Mitsubishi Air Conditioner PEFY-P72NMHSU-E

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Drain Pump

PAC-KE05DM-F

Long-Life Filter

PAC-KE85LAF

Filter Box

PAC-KE250TB-F

External Heater Adapter

PAC-YU25HT

Drain Pump

PAC-KE05DM-F

Long-Life Filter

PAC-KE85LAF

Filter Box

PAC-KE250TB-F

External Heater Adapter

PAC-YU25HT

Drain Pump

PAC-KE05DM-F

Long-Life Filter

PAC-KE85LAF

Filter Box

PAC-KE250TB-F

External Heater Adapter

PAC-YU25HT
